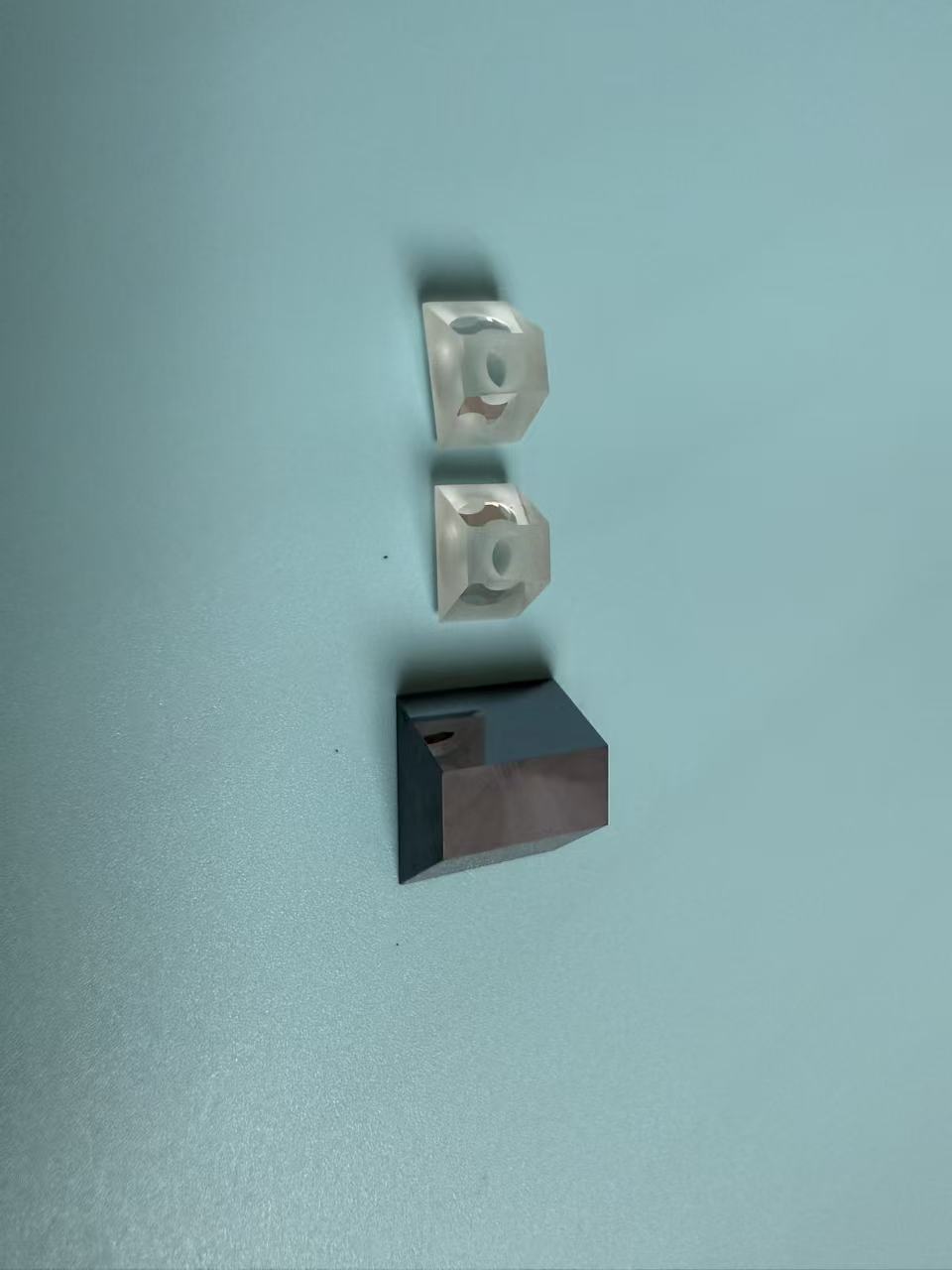

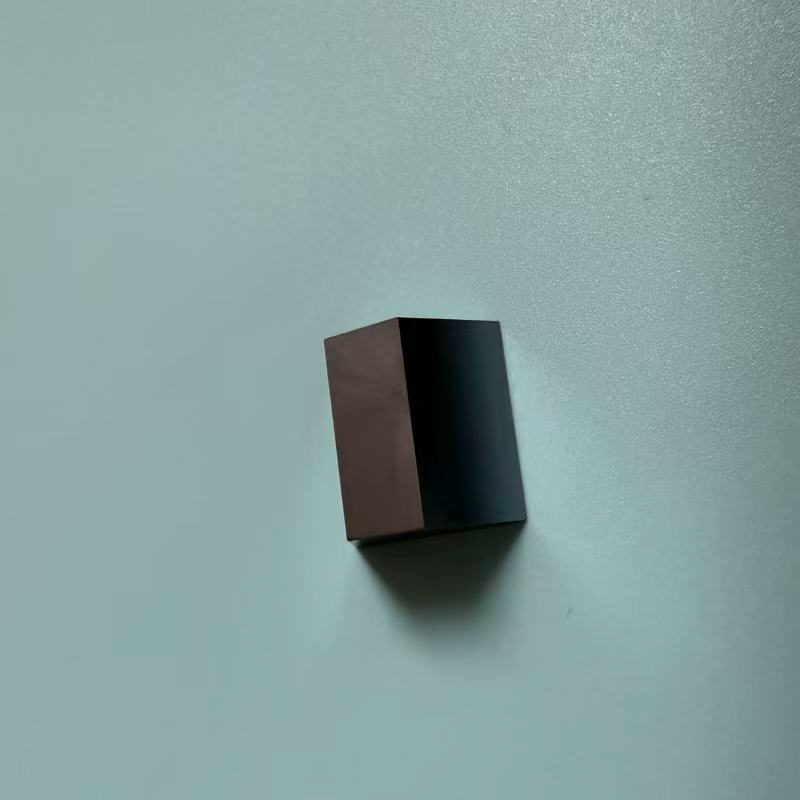

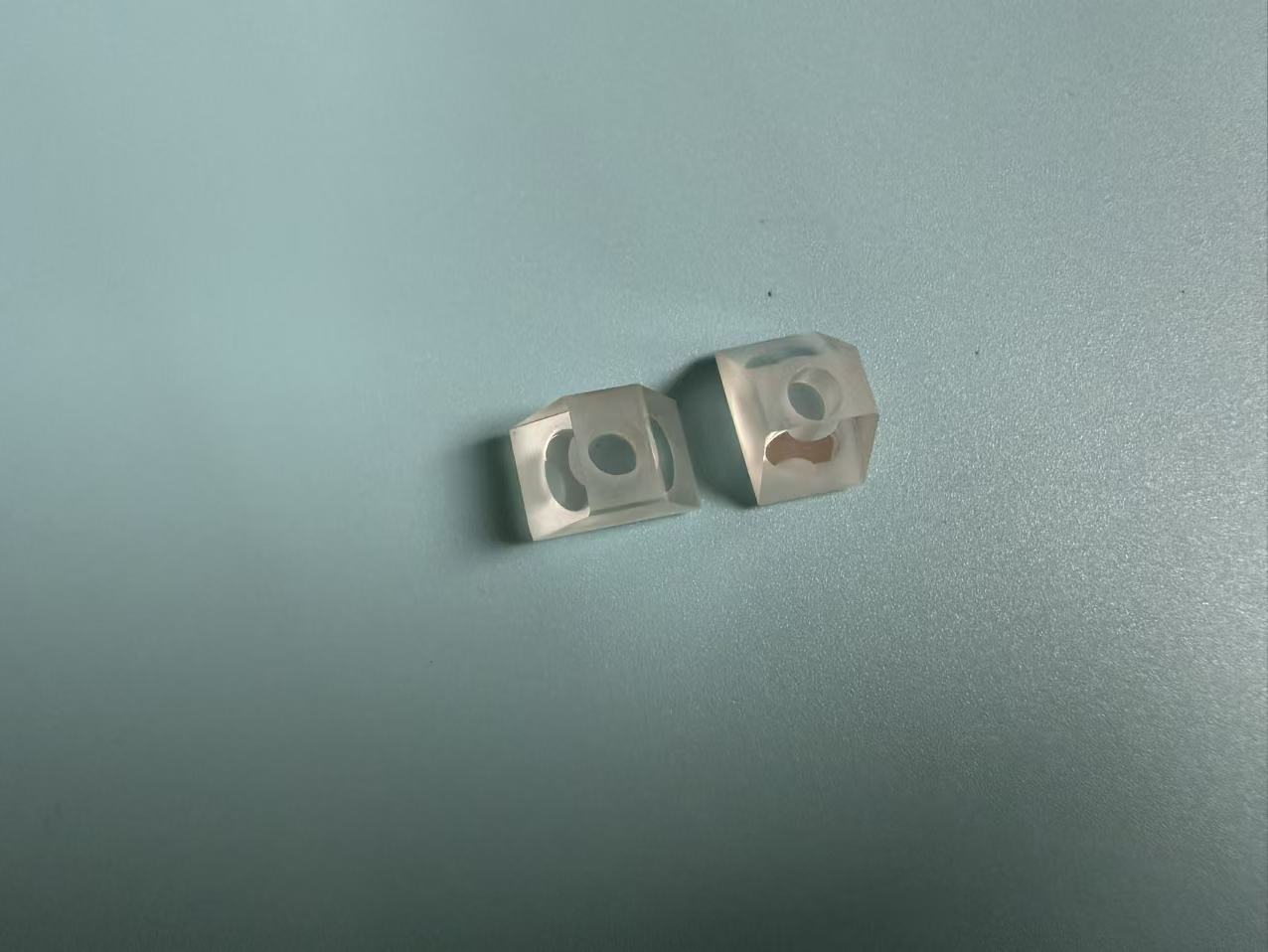

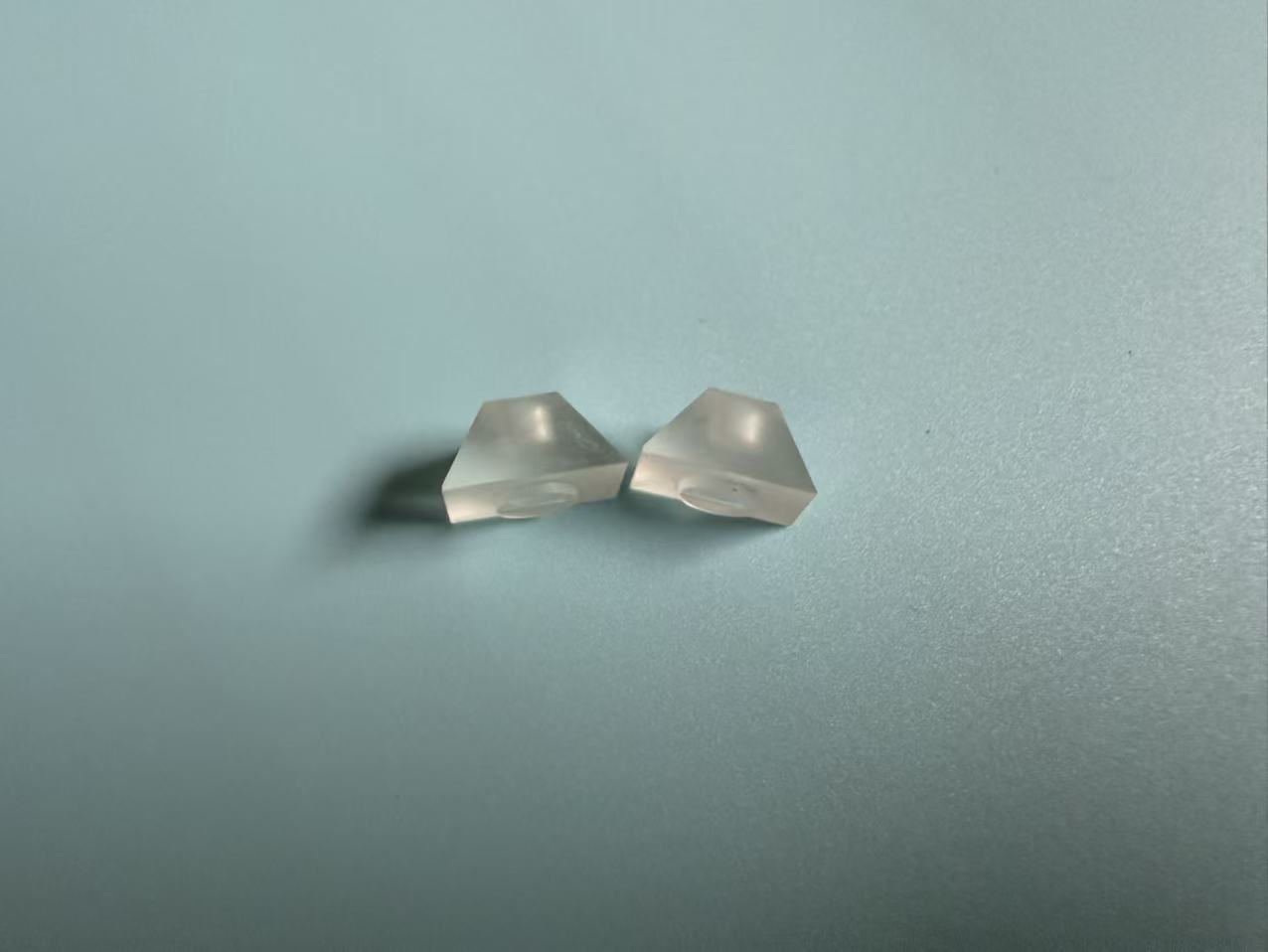

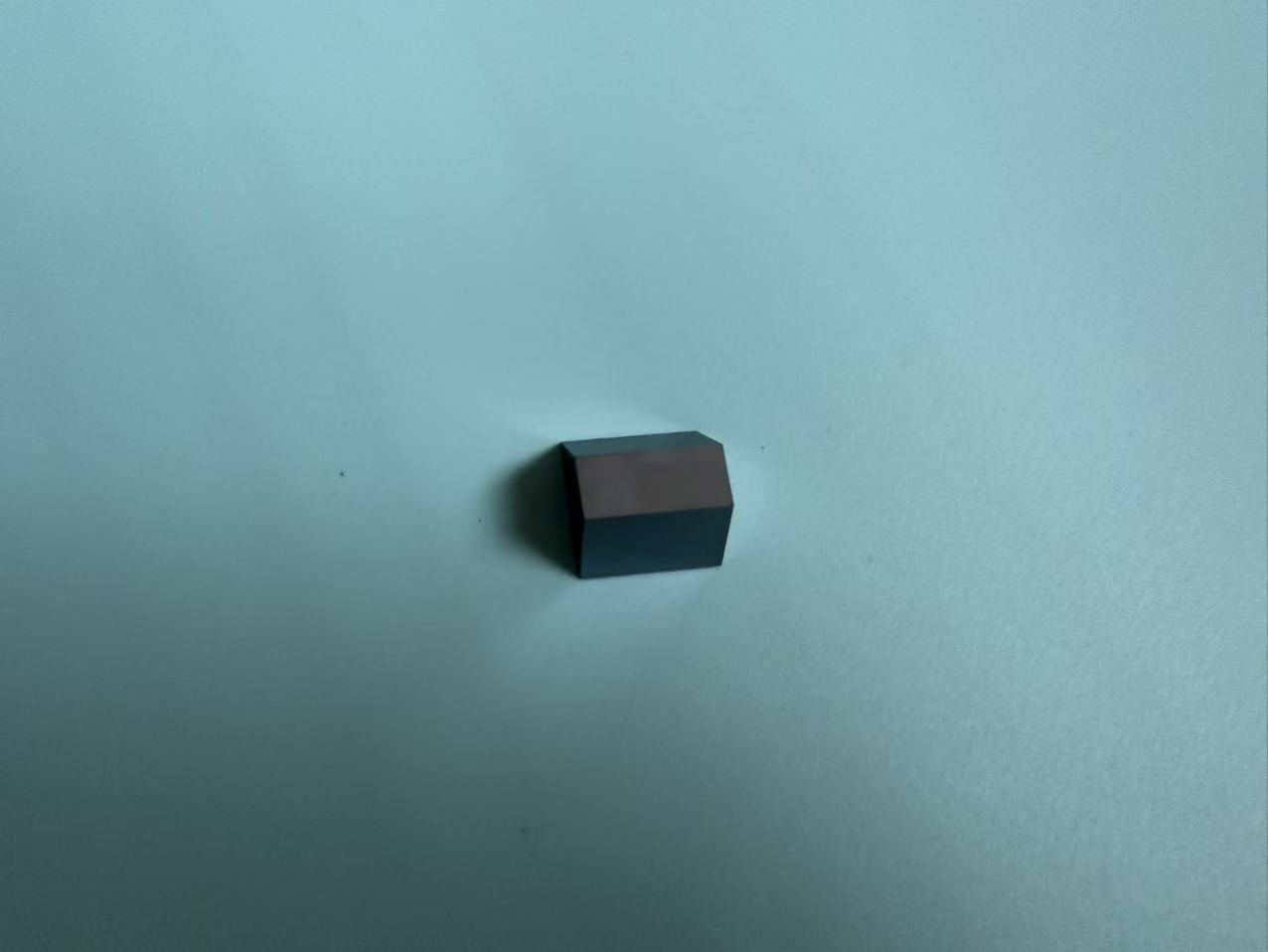

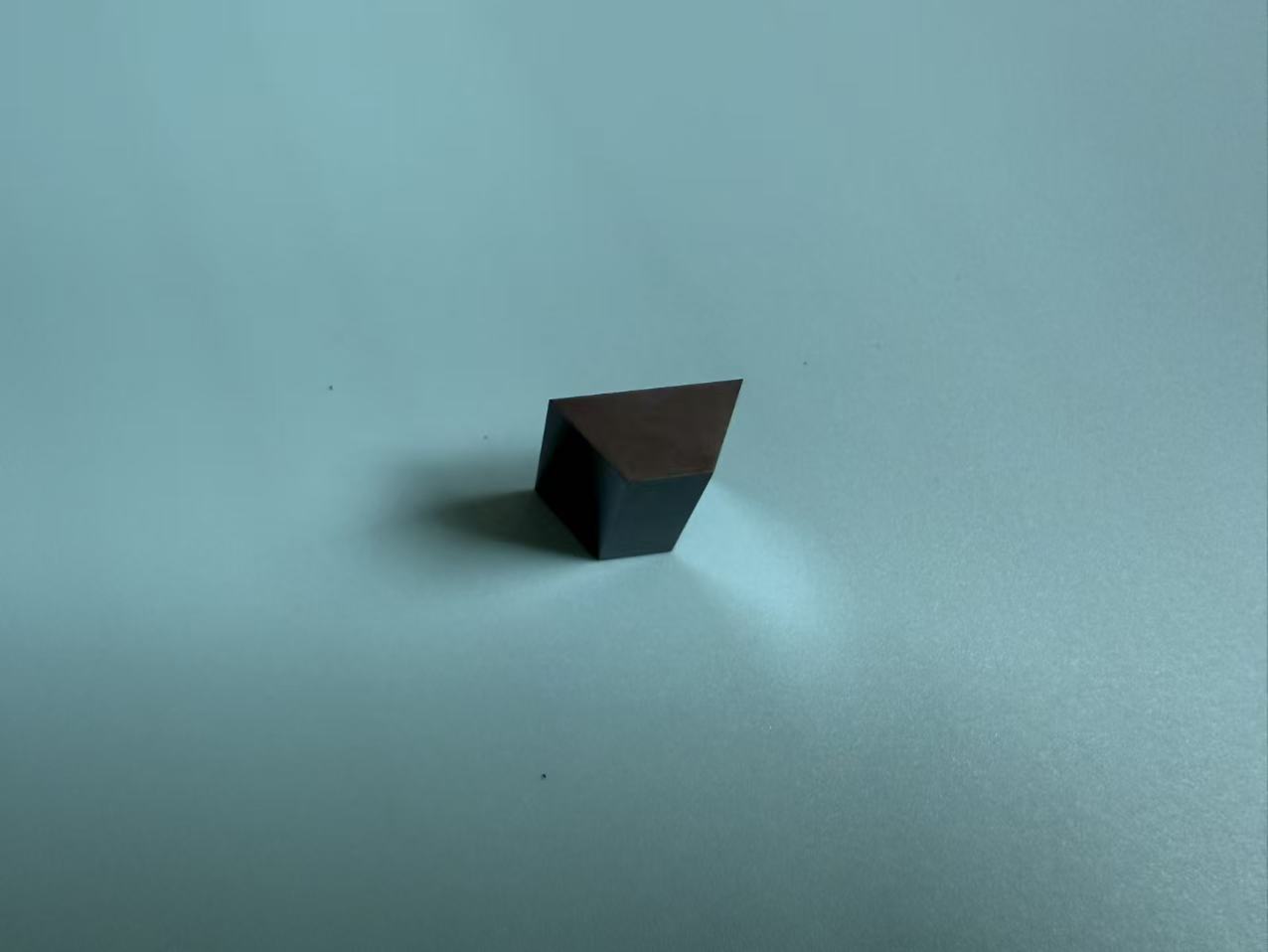

optical glass dove prism

Dove Prisms are routinely used to invert images or as optical delay lines. They are supplied uncoated but a variety of coating options are available.   UV fuses silica prisms are recommended for high power applications, Please contact us with your detailed prism and coating requirments.   Specifications   Shape of Prism Right-angle prisms, Wedged prism, Pentagonal prisms, TIR prisms, Dove prisms, Rhombohedral prisms, Corner cube prism, Equilateral Prism or custom made accordingly your design Substrate optical glass, k9, fused silica(JGS1,JGS2), sapphire, single crystal silicon, Znse, ZnS etc Size(mm) 5*5-10*10, 20*20-50*50, 60*60-180*180 Surface Quality 40/20 Angle Tolerance <5'  Flatness lambda/4 at 632.8nm Coating Types Anti-Reflection (AR) coating , Partial Reflection (PR) coating, High Reflection (HR) coating, Dielectric coating, Beamsplitter, Waterproof coating, Filters, Infrared (IR) Coating, UV coating Application projectors, periscopes, telescopes, microsco…
