Reliable Laser Scanner for Workplace Safety

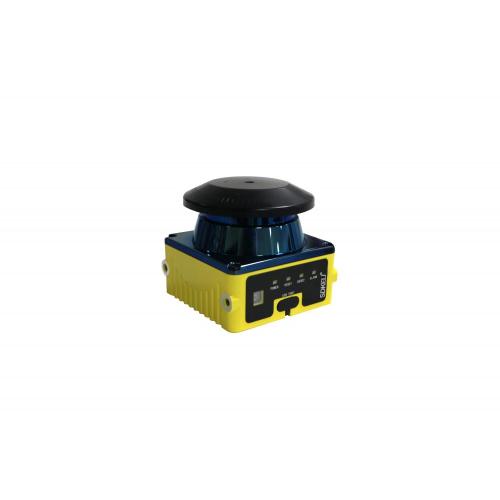

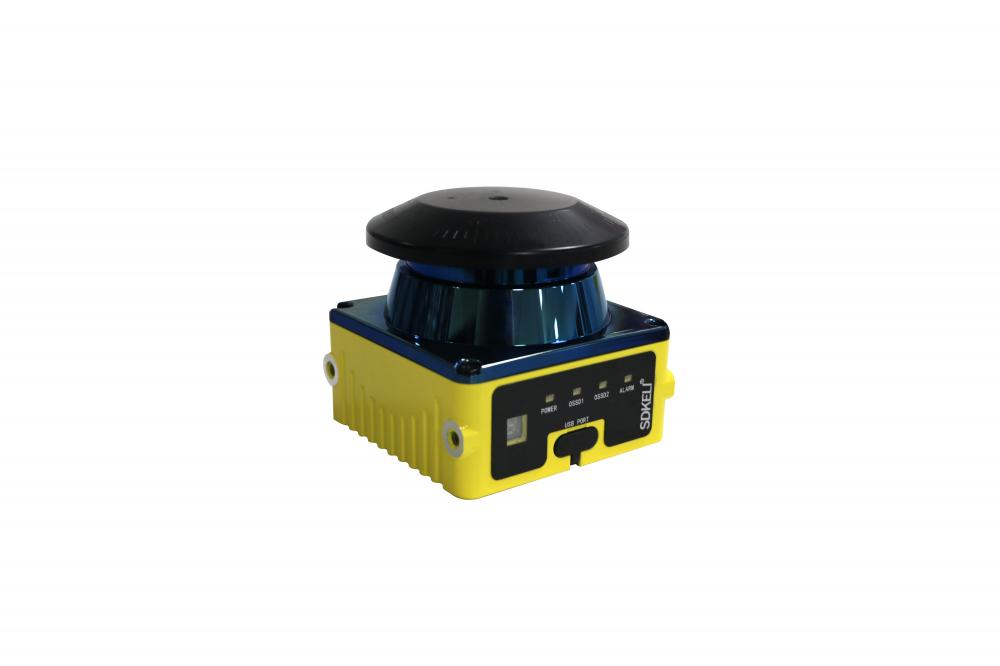

Product Introduction KLMs safety lidar is electrical sensitive protective equipment (ESPE). It is designed based on the principle of pulsed laser ranging. It can realize two-dimensional area protection with angle of 276°， radius of 4m (1.8% reflectivity) by rotating scanning. Functional safety output and measurement output are available. User’s need for safety obstacle avoidance and measurement can be met at the same time.     Features ●SIL2, PL d, Type 3, TÜV Rheinland certified, compliant with standards IEC 61508, ISO 13849, and IEC 61496； ● The measurement accuracy is not affected by the change of target reflectivity. Stable and consistent measurement result in any complex application scenarios and among several lidars.； ● Support static and dynamic input free transformation and 64 protection zone settings, which can be combined freely to adapt to complex and variable application scenarios； ● The window adopts a stepped structure design to achieve super dirt resistance performan…
