Scanning Rangefinder Dangerous Area Industrial radar Sensor

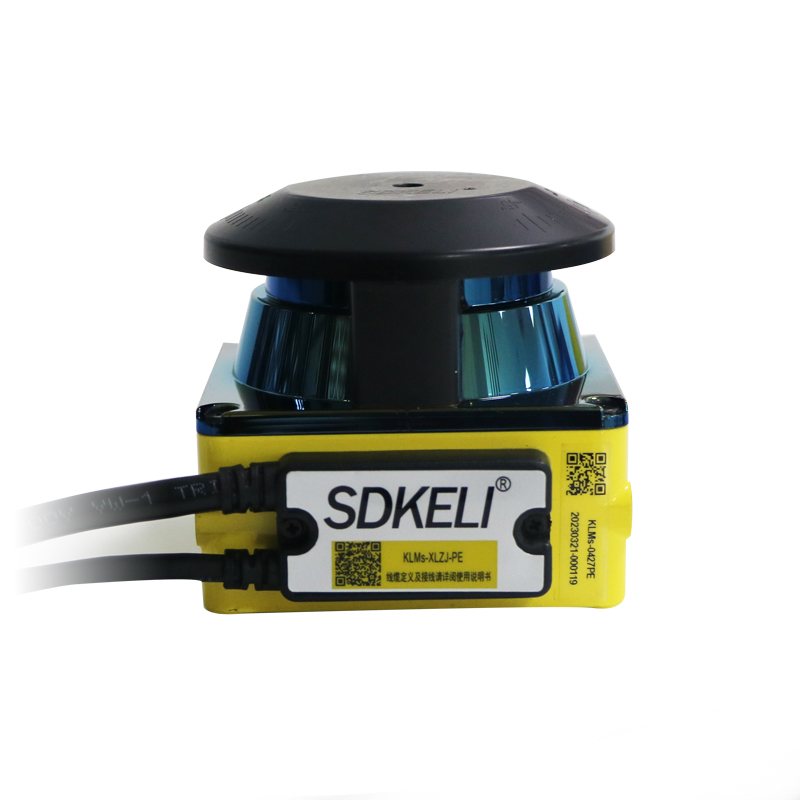

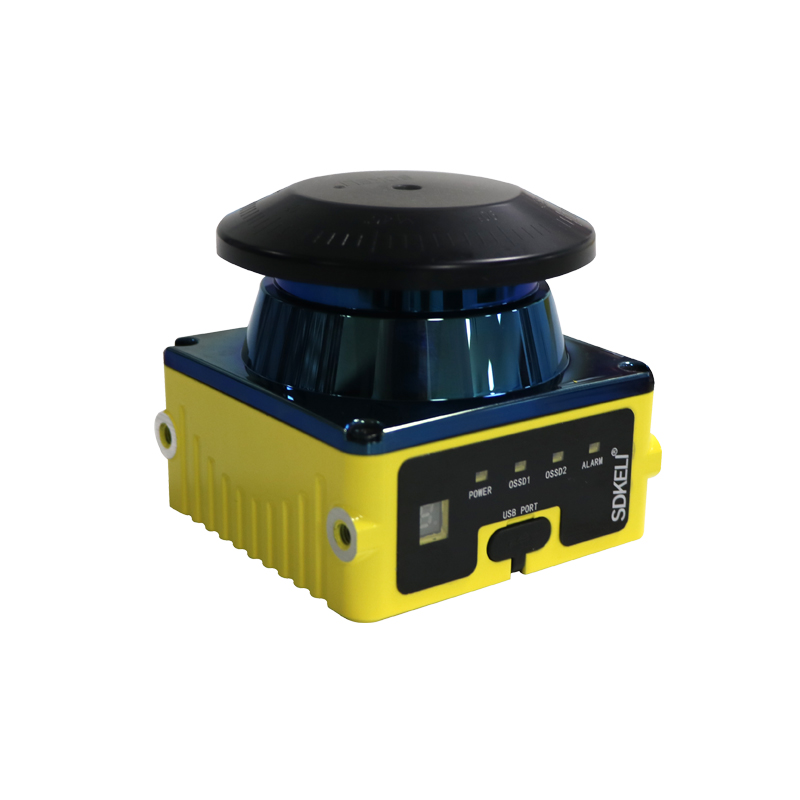

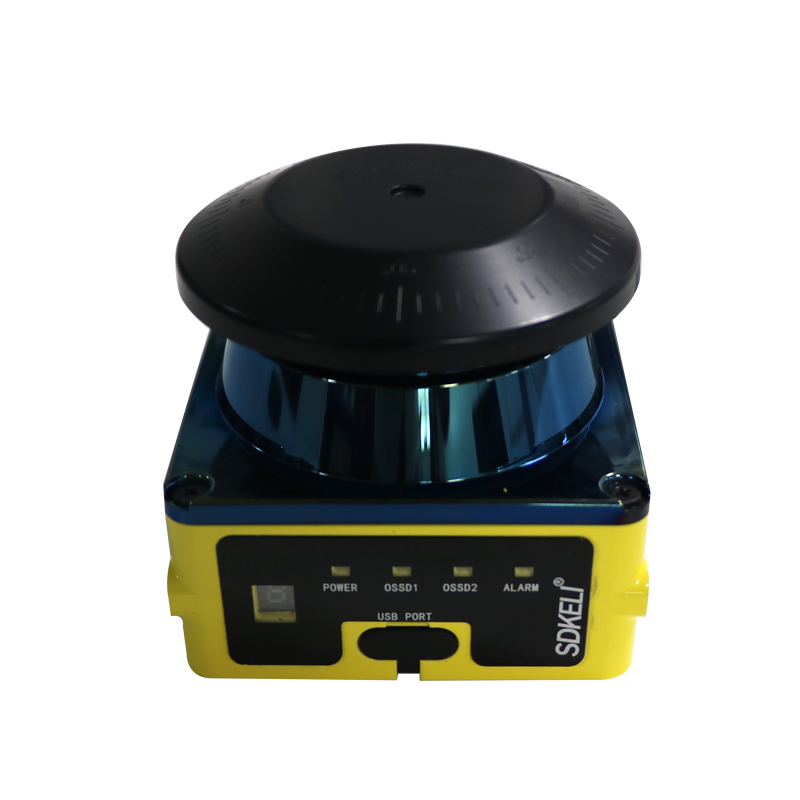

  TÜV Functional Safety Certified LiDAR SIL2, PL d, Type 3, certified by TÜV Rheinland, complying with standards IEC 61508, ISO 13849 and IEC 61496 Overview The KLMs Type Safety Laser LiDAR is an Electrically Sensitive Protective Equipment (ESPE). Based on the principle of pulsed laser ranging, it achieves two-dimensional area protection for objects with an angle of 276° and a radius of 4 m @ 1.8% Reflectivity through rotational scanning. It can provide functional safety output and measurement data output, meeting users' needs for safe obstacle avoidance and measurement simultaneously. Advantages The measurement accuracy is immune to variations in target reflectivity, delivering stable and consistent results even in complex applications and multi-LiDAR setups.   Supports free conversion of static and dynamic inputs and setting of 64 protection zones, which can be freely combined to adapt to complex and changing application scenarios.   The optical window features an innovative structu…
