Starting Transformer with Shell

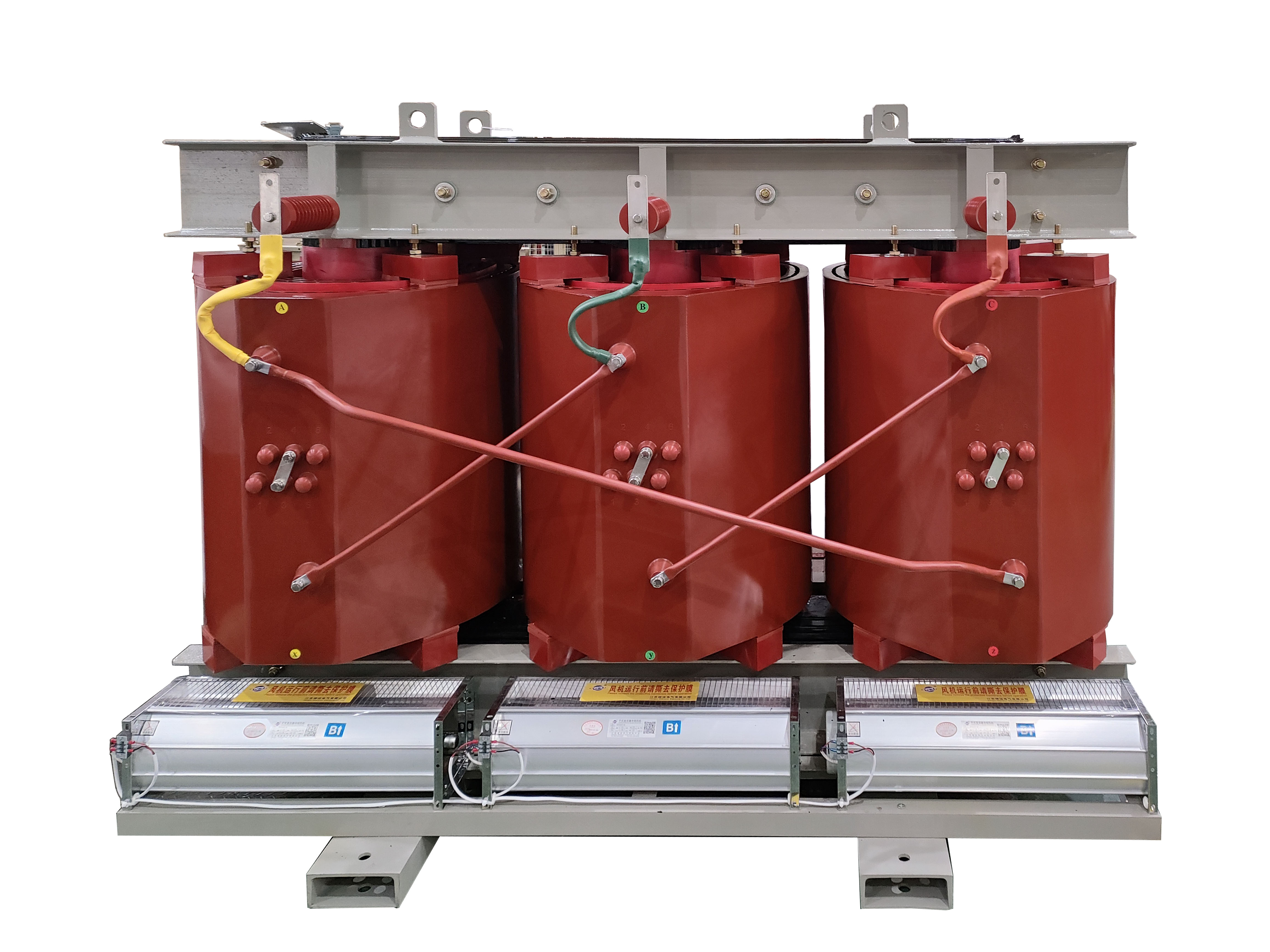

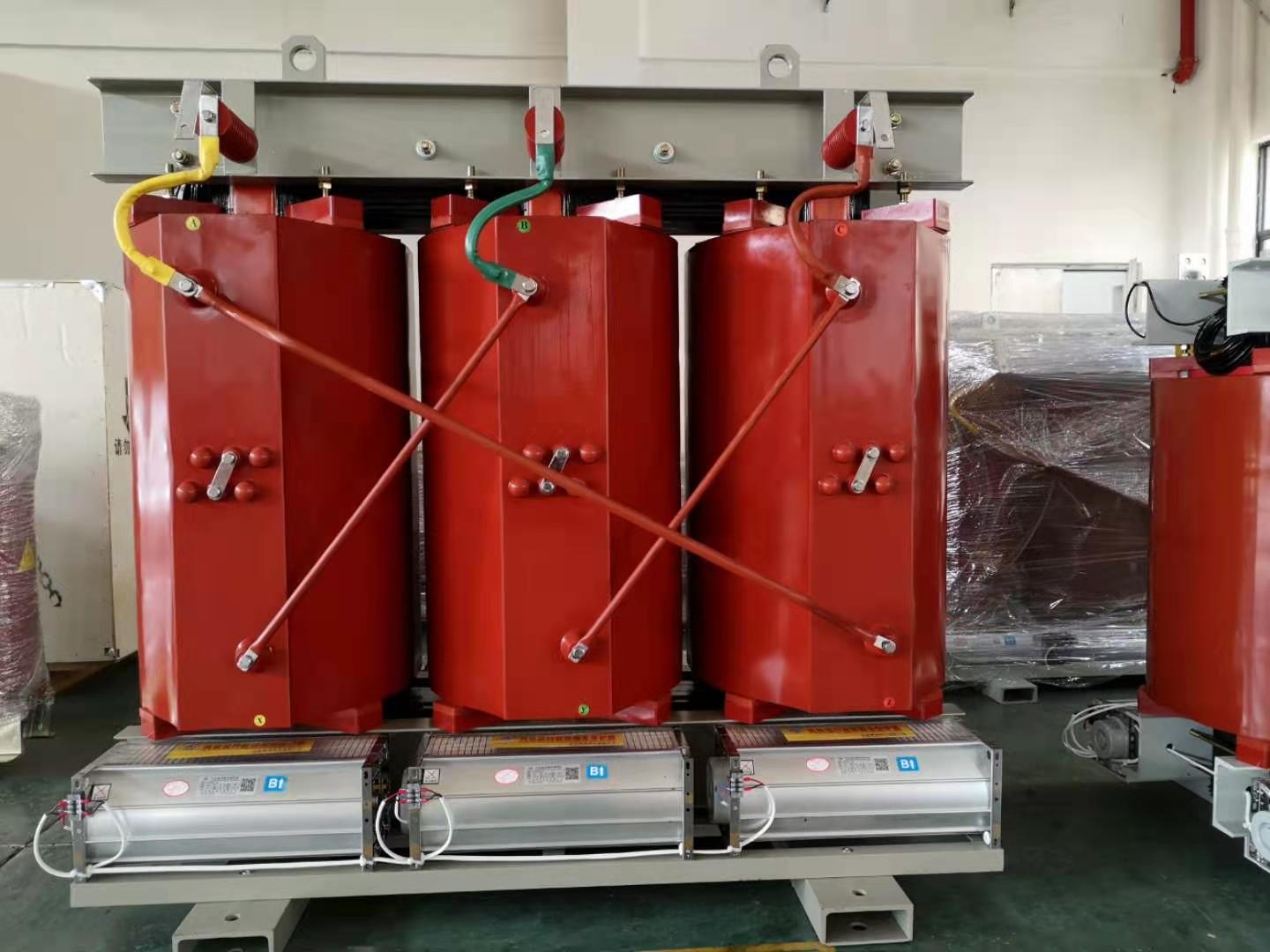

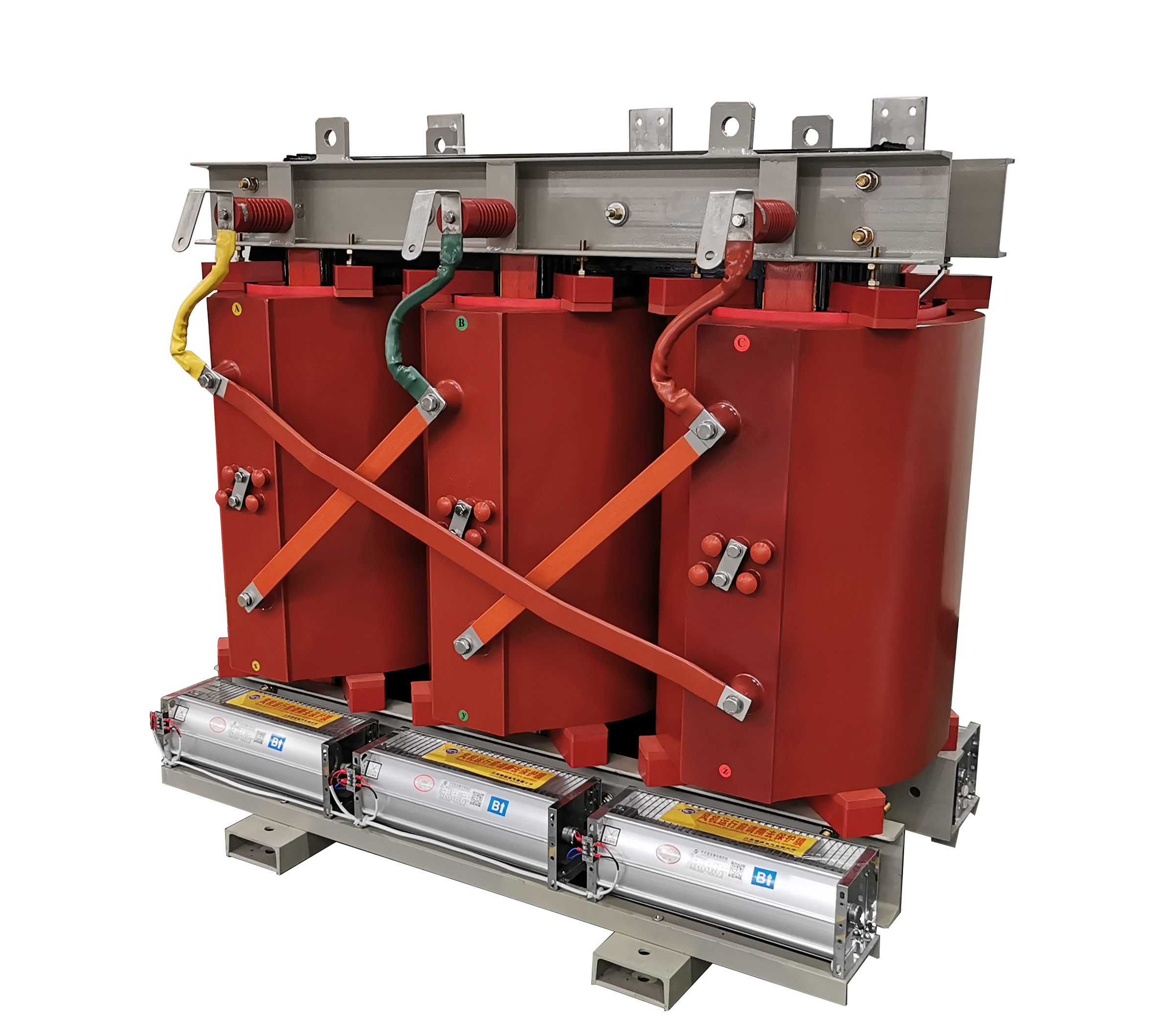

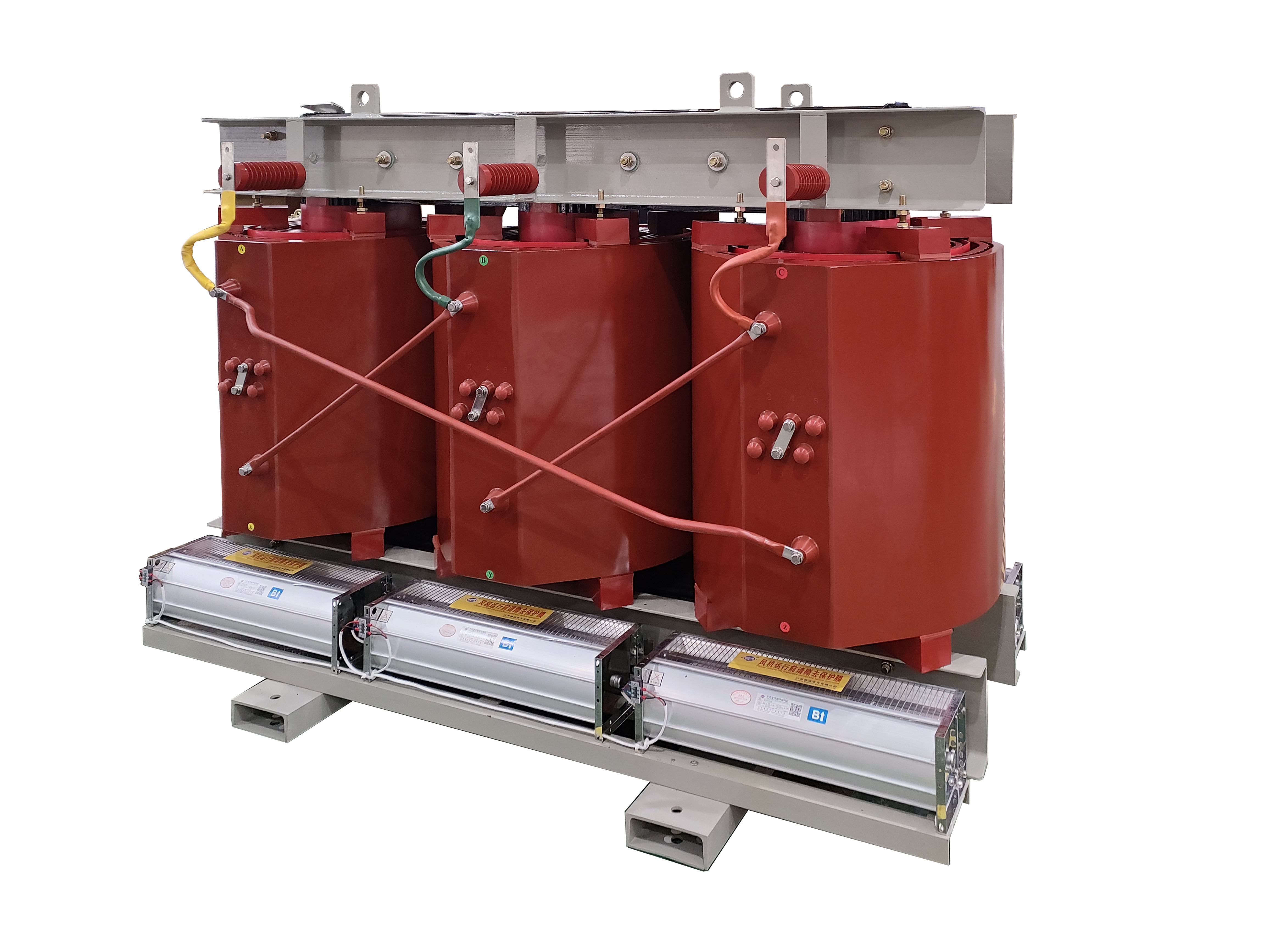

Starting Transformer with Shell Product Overview The LEABE Starting Transformer with Shell is a robust, high-performance High-Voltage Starter engineered to mitigate the extreme electrical and mechanical stress associated with starting large AC asynchronous motors. When a motor starts at rated voltage, it draws an inrush current typically 5 to 7 times its full-load rating, which can cause severe voltage sags and grid instability. This LEABE Transformer utilizes a voltage reduction method via an autotransformer configuration to limit this starting current while delivering the high torque necessary to accelerate heavy loads. Unlike standard open-frame designs, the shell-type construction provides superior short-circuit withstand capability and mechanical strength, making it the ideal solution for high-power applications ranging from 220KW to 20,000KW in demanding industrial environments. Technical Specifications Rated Power: 220KW – 20,000KW Primary Voltage: 3.3kV, 6.6kV, 11kV, 13…
