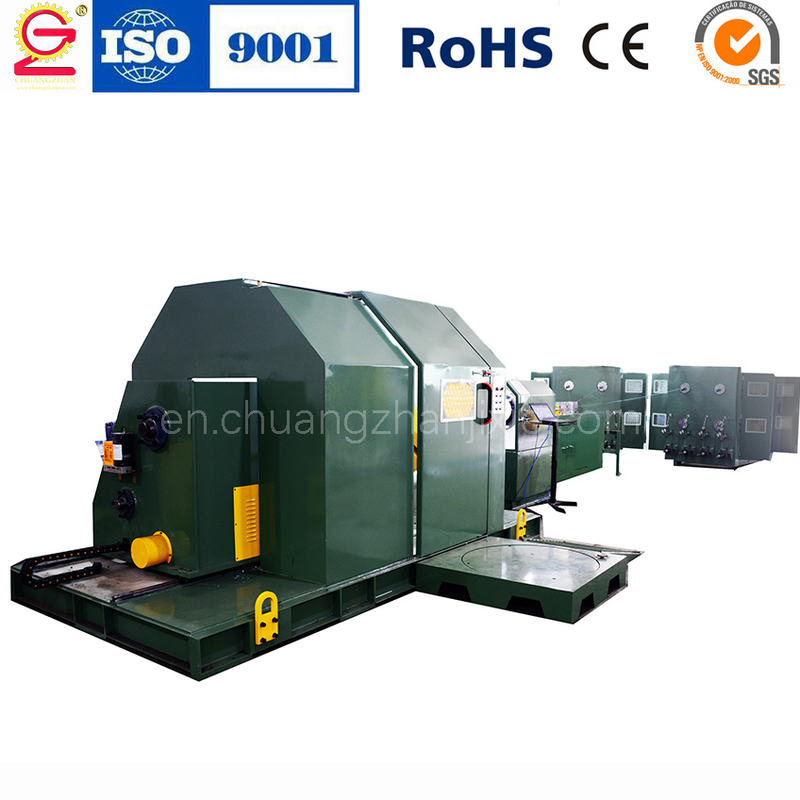

1000 Cantilever Computer Single Strander

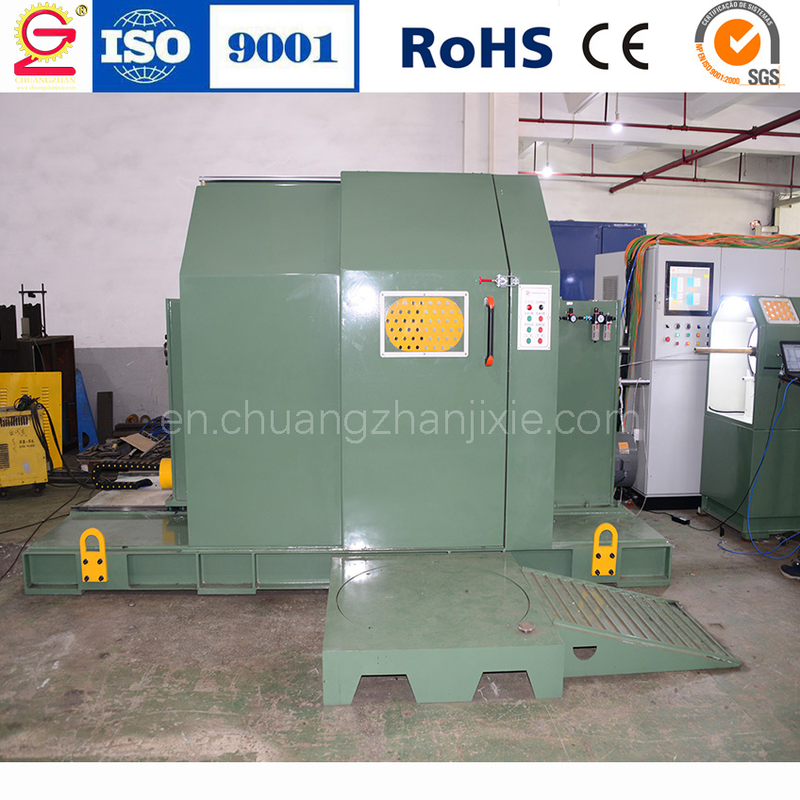

1000 Cantilever Computer Single Strander   Precise Twisting Performance for Different Cable Applications   The 1000 Cantilever Computer Single Strander is designed for cable core twisting production and can work together with a back twisting unit for communication and data cable processing. It supports wire diameters from Φ1-4mm, with a maximum twisting diameter of Φ20mm and an adjustable pitch range of 40-400mm. The pitch accuracy reaches ±2%, helping manufacturers keep cable structure stable during continuous production. Item Specification Application General cable core twisting, data cable twisting with untwister linkage Processing Range Core wire Φ1–4mm, max twisted wire Φ20mm Max Speed 550RPM Twist Pitch 40–400mm (computer adjustable), accuracy ±2% Twist Direction Left, Right, S/Z switchable Mechanical Structure Reinforced frame & bow, ball screw + linear guide, hydraulic reel lifting, automatic bearing lubrication Drive System Servo take-up motor, Yaskawa…
