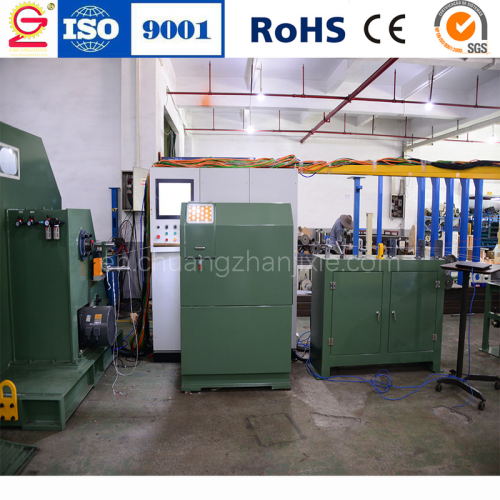

1250 Cantilever Computer Single Strander

1250 Cantilever Computer Single Strander   Built for Large Diameter Cable Core Twisting Production   The 1250 Cantilever Computer Single Strander is designed for cable manufacturers producing medium and large size cable cores that require stable twisting performance. It is suitable for various cable core twisting applications and can work together with a back-twist unit for data cable production. The machine supports wire sizes from φ0.9mm to 5.0mm, with a maximum twisted cable diameter of Φ30mm. Item Specification Application Suitable for various cable core twisting; supports data cable twisting with untwister Processing Range Core wire Φ0.9–5.0mm, max twisted wire Φ30mm Max Speed 400RPM Twist Pitch 40–400mm (adjustable), precision ±2% Twist Direction Left, Right, S/Z switchable Structure 8-head magnetic pay-off frame, taping machine, Φ1250 cantilever twister Tension Control 5kg magnetic powder tension system Drive System 50HP Siemens main motor, Yaskawa inverter…
