High-Speed Physical Foaming Extrusion Line

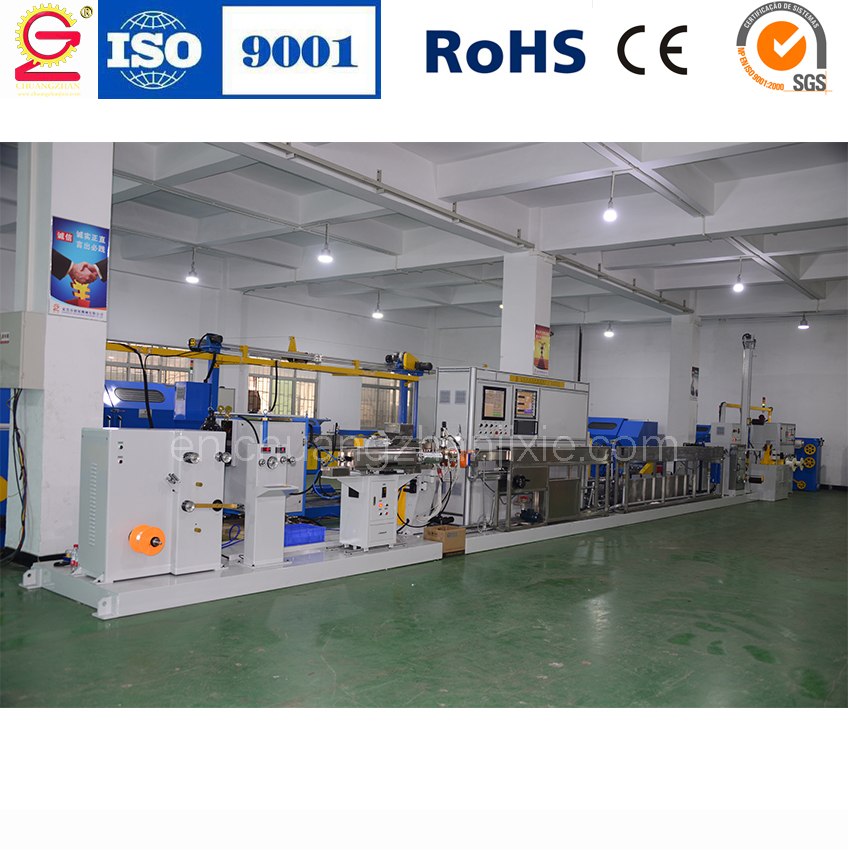

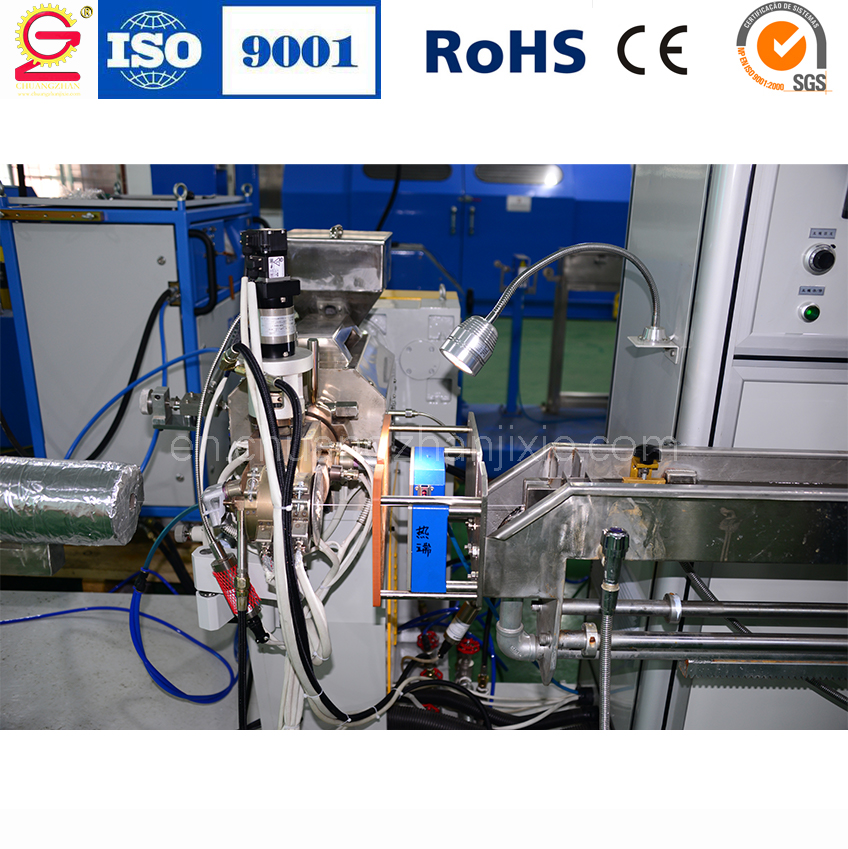

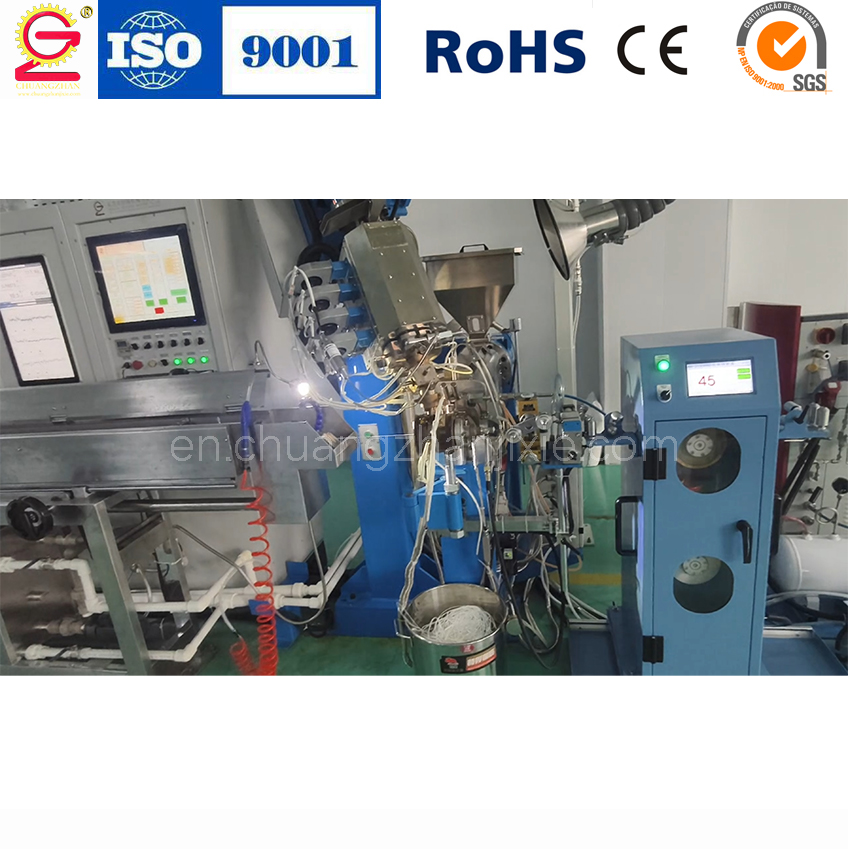

High-Speed Physical Foaming Extrusion Line   High-Speed Production with Stable Foam Insulation Control   The Chuangzhan High-Speed Physical Foaming Extrusion Line is built for cable manufacturers who need faster output while keeping insulation quality consistent. By controlling the foaming process and material flow, this line helps produce cables with uniform foam structures, stable diameter, and reliable electrical performance.  Parameter CZ Small Extruder φ12-φ28 CZ Medium Extruder φ30-φ45 CZ Large Extruder φ50-φ90 Model φ12 φ15 φ18 φ20 φ25 φ28 φ30 φ35 φ40 φ45 φ50 φ60 φ70 φ80 φ90 Extrusion Material FEP PFA ETFE XETFE Output Capacity 1.5kg/h to 12kg/h 15kg/h to 30kg/h 37kg/h to 160kg/h Finished Wire Range 0.08 to 1.4mm 0.25 to 10.0mm 5.0 to 35.0mm Production Speed 0 to 300 m/min 0 to 300 m/min 0 to 150 m/min Conductor Structure Single or stranded conductor Stranded wire and core Stranded wire and core Insulation Type Single co extrusion multi layer extrusion stri…
