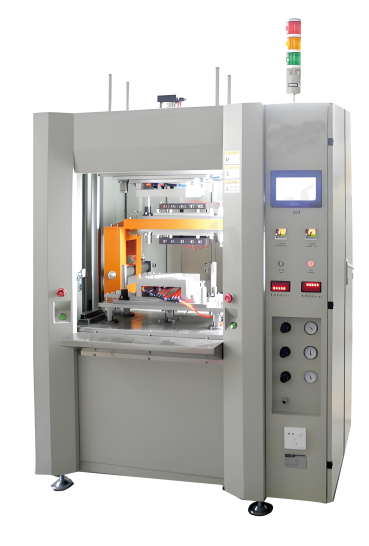

Digital Pneumatic Hot Plate Welding Equipment

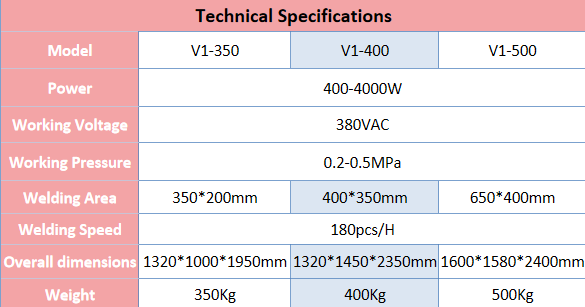

Pneumatic Hot Plate Welding Equipment for Large Irregular Plastic Parts This pneumatic hot plate welding equipment is equipped with touch‑screen HMI for digital parameter setting and recall. It delivers watertight and airtight sealing performance after fusion welding. It is well‑suited for large‑size, irregular and arc‑shaped plastic workpieces. Multiple model options cover different welding‑area demands, stable operation and easy‑to‑use design support high‑volume plastic parts manufacturing.   Technical Specifications Model V1-350 V1-400 V1-500 Power 400-4000W Working Voltage 380VAC Working Pressure 0.2-0.5MPa Welding Area 350*200mm 400*350mm 650*400m Welding Speed 180pcs/H Overall dimensions 1320*1000*1950mm 1320*1450*2350mm 1600*1580*2400mm Weight 350Kg 400Kg 500Kg   Main Technical Features Simple operation & wide compatibility: User‑friendly operation, adaptable to diversified production scenarios. Superior welding strength: Fusion‑welded joints achieve w…
