Hot Riveting Welding Equipment

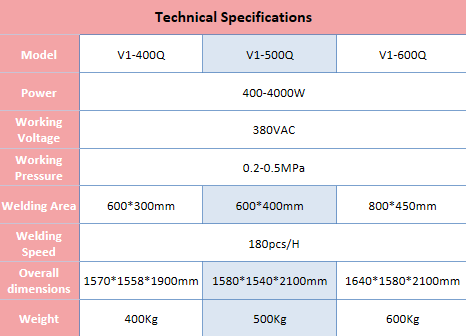

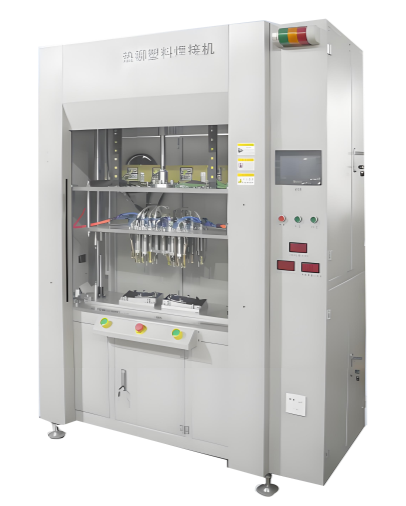

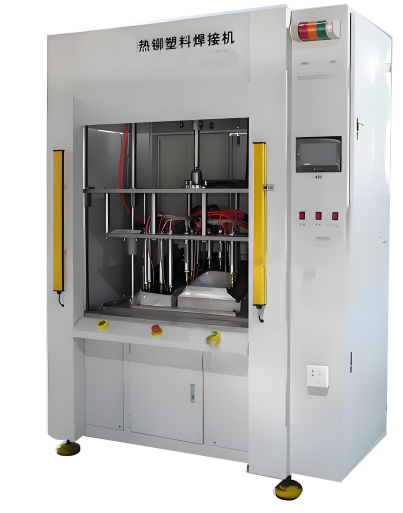

  Automatic Hot Riveting Welding Machine For Plastic Assembly Designed for plastic hot rivet forming assembly, this equipment achieves reliable connection between plastic parts and embedded accessories via thermal fusion. Independent temperature control for each riveting point ensures consistent riveting quality. Rapid cold air cooling improves production efficiency. Modular standardized interface enables fast mold switching to meet multi-product flexible production demands. Safety enclosure is equipped to guarantee operator safety during continuous operation. Mainly applied to automotive dashboard, interior trim and other plastic assemblies.   Technical Specifications Model V1-400Q V1-500Q V1-600Q Power 400-4000W Working Voltage 380VAC Working Pressure 0.2-0.5MPa Welding Area 600*300mm 600*400mm 800*450mm Welding Speed 180pcs/H Overall Dimensions 1440*1450*1900mm 1540*1560*2000mm 1700*1800*2100mm Weight 400Kg 500Kg 600Kg   Main Features Parameter Setting: Adopt…
