Ultrasonic Metal Welding Equipment for Wire Harness

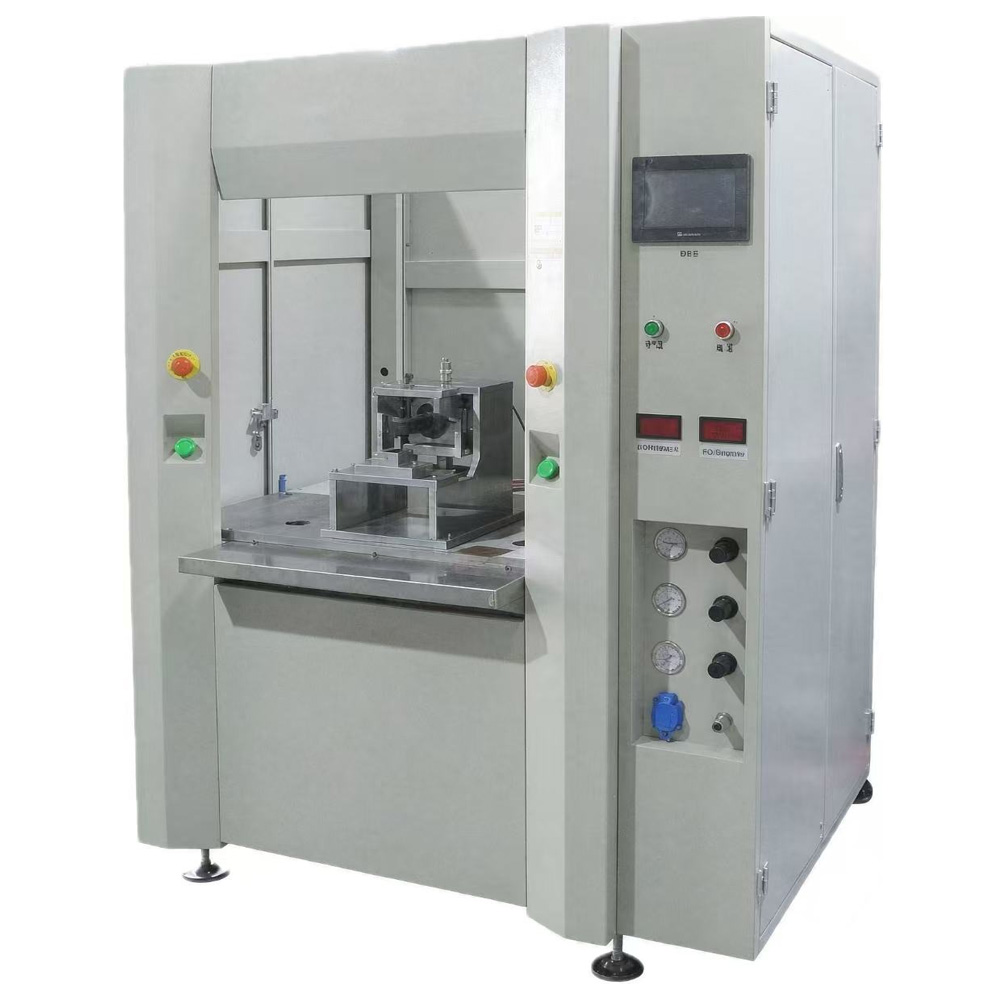

Ultrasonic Metal Welding Equipment for Automotive Wire Harness Built for automotive wire harness metal joint processing, this ultrasonic metal welding equipment applies automatic tracking constant‑current control technology to guarantee stable operation. Its adjustable fixture structure supports wire harness ranging from 0.5 mm to 20 mm. With stable high‑power output, multi‑point temperature control, it produces solid and tidy welding results. High hourly output adapts to high‑volume production demands of automotive tier‑1 component suppliers. Technical Specifications Model V1-2030 Welding Area 800*460mm Power 3000-5000W Welding speed 180pcs/H Working Voltage 380VAC Overall dimensions 1570*1558*1900mm Working Pressure 0.15-0.8MPa Weight 350kg   Main Technical Features 1.Intelligent control: Adopt automatic tracking constant‑current technology for stable running performance. 2.Wide compatibility: Adjustable fixture dimension, suitable for wire harness welding within 0.5‑2…
