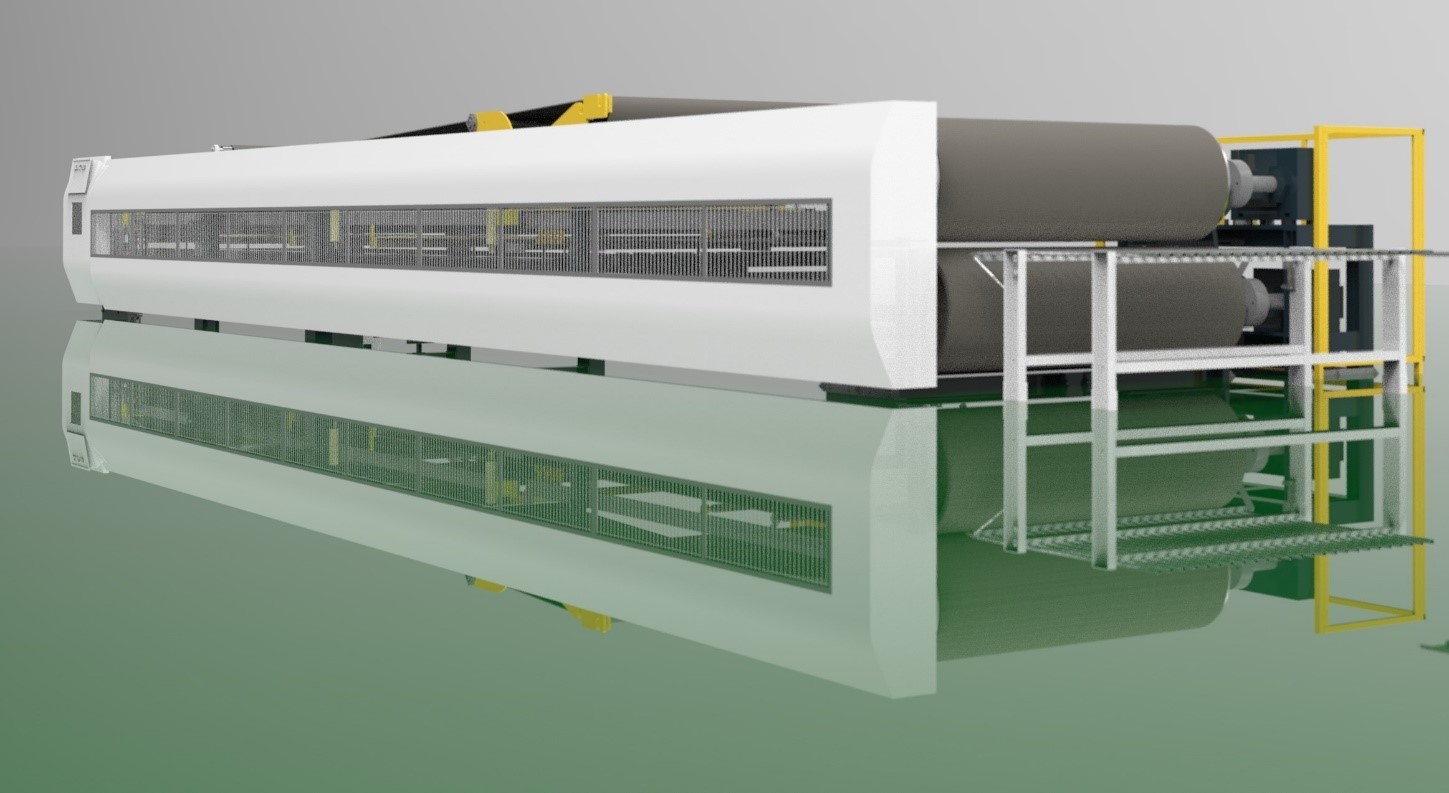

DOUBLE FACER

The double facer is used for pasting the 2ply corrugated paper with kraft paper. Those paper will enter into hot plates heating after pasted glue, with shoe press, then by become into corrugated board after cooling.    Option size: 1800mm, 2200mm, 2500mm, 2800mm, 3100mm, 3500mm. Option speed: 200~400m/min.   Description: 1) The hot end feed is made of 40mm steel body, the column is made of U-400# steel, and the bottom is with 3*150H section. The cold end adopts U-300 section steel, and the column adopts 150H section. 2) High performance heat-conducing hot plate with GB pressure vessel certificate. 3) Adopt 2 hot plate(steam bath), patent product, improve 4ply production speed. 4) Curved preheater is installed in front of feeding end of double-facer(without pressure vessel certificate). 5) Energy saving temperature control: In PLC temperature control mode, thermocouple is used to detect the temperature of the hot plate, and the switch action is carried out by pneumatic…
