Four-Axis Ultrasonic Welder for Floor Console

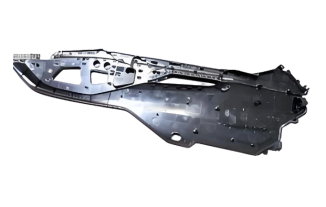

Flexible Four‑axis Ultrasonic Welding Equipment for Automatic Floor Console This flexible four‑axis linked ultrasonic welding equipment adopts X,Y,Z,R four‑axis mobile welding mode, equipped with high‑precision servo system and automatic welding‑die replacement mechanism. It supports welding, riveting and piercing welding for automotive floor console, engine shield and foot protection plate. Fast‑change fixture realizes multi‑variant flexible production, with repeat positioning accuracy up to ±0.05 mm.   Specification: Model V1-AUDIC-BEV Welding Area 1100*400mm Power 3KW Welding speed 0.1–4 s/point Working Voltage 380VAC Overall dimensions 2300*1900*2500mm Work pressure 0.1-0.6MPa Weight 800kg Technical Features: 1.High-precision Drive: Equipped with a high-precision servo system and an automatic welding die replacement mechanism, it can meet the processing requirements of welding points of different specifications. Four-axis Linked Welding: Adopting X, Y, Z, R four-axis…
