5w5 pin connector male and female

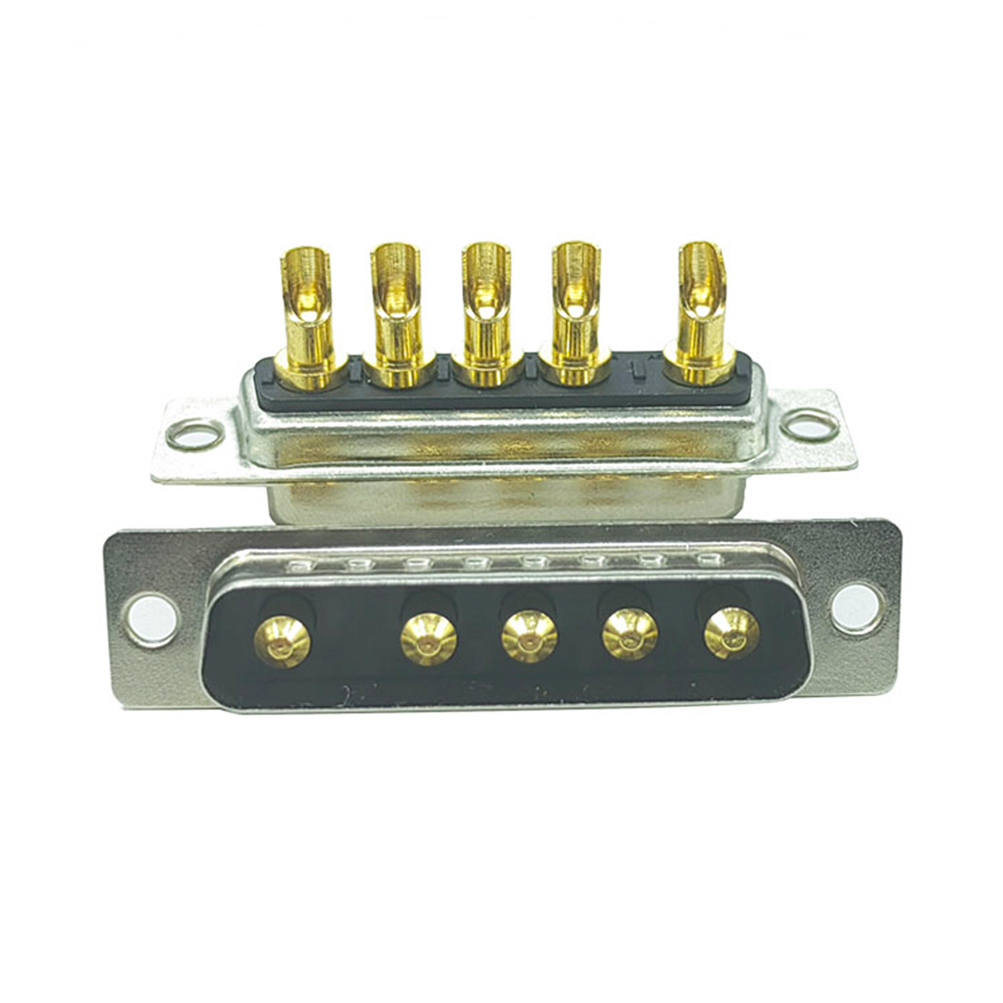

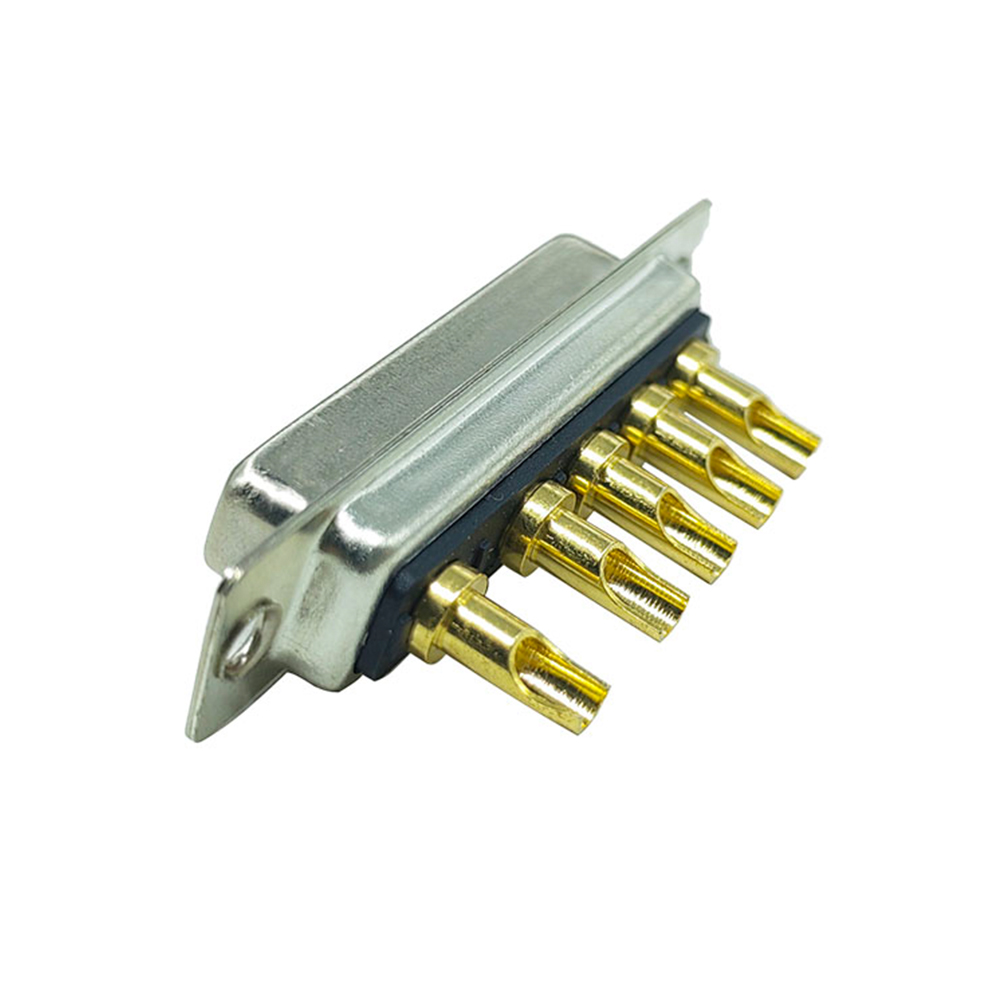

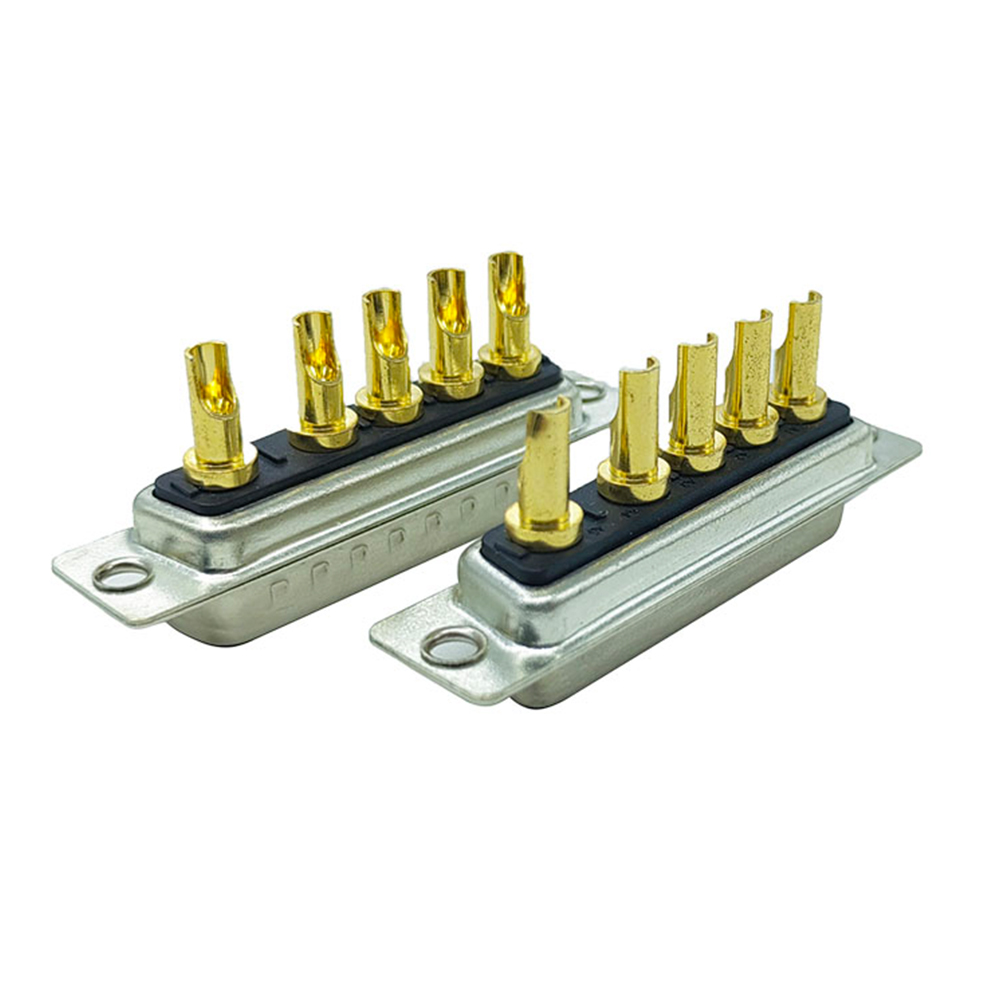

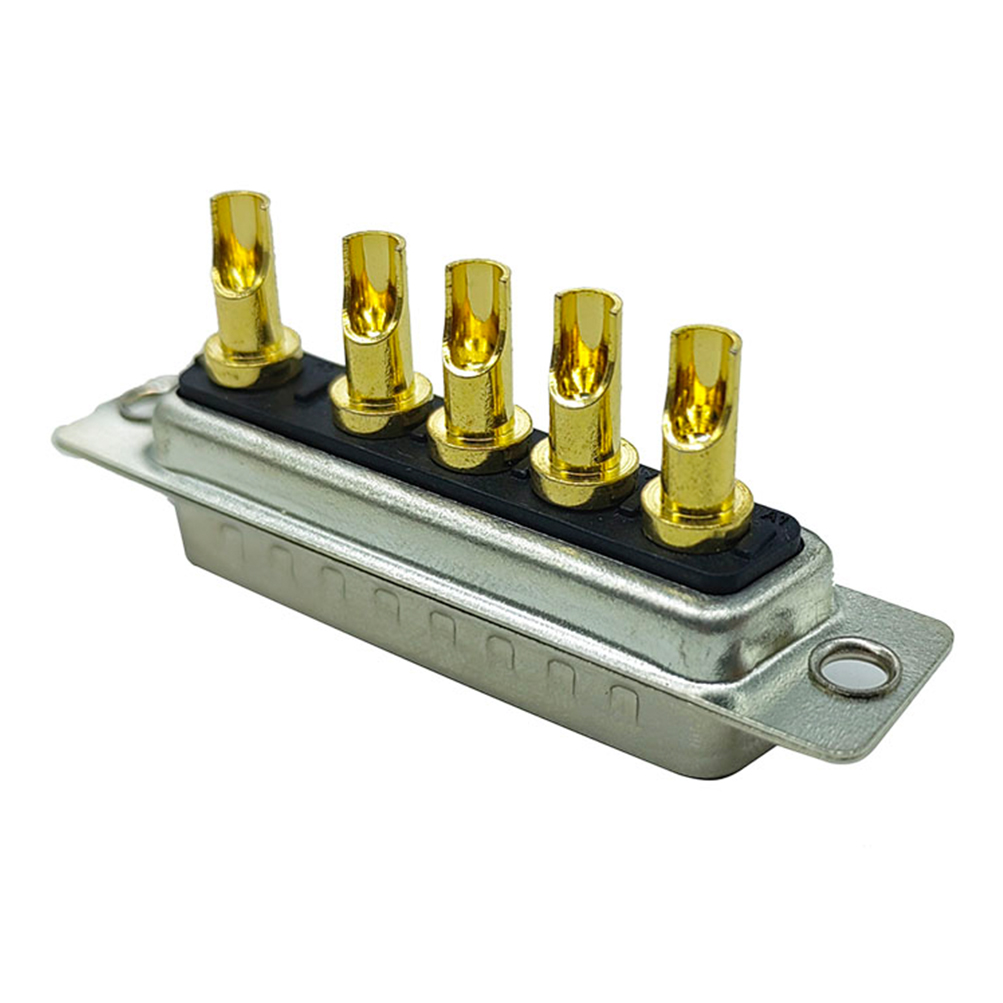

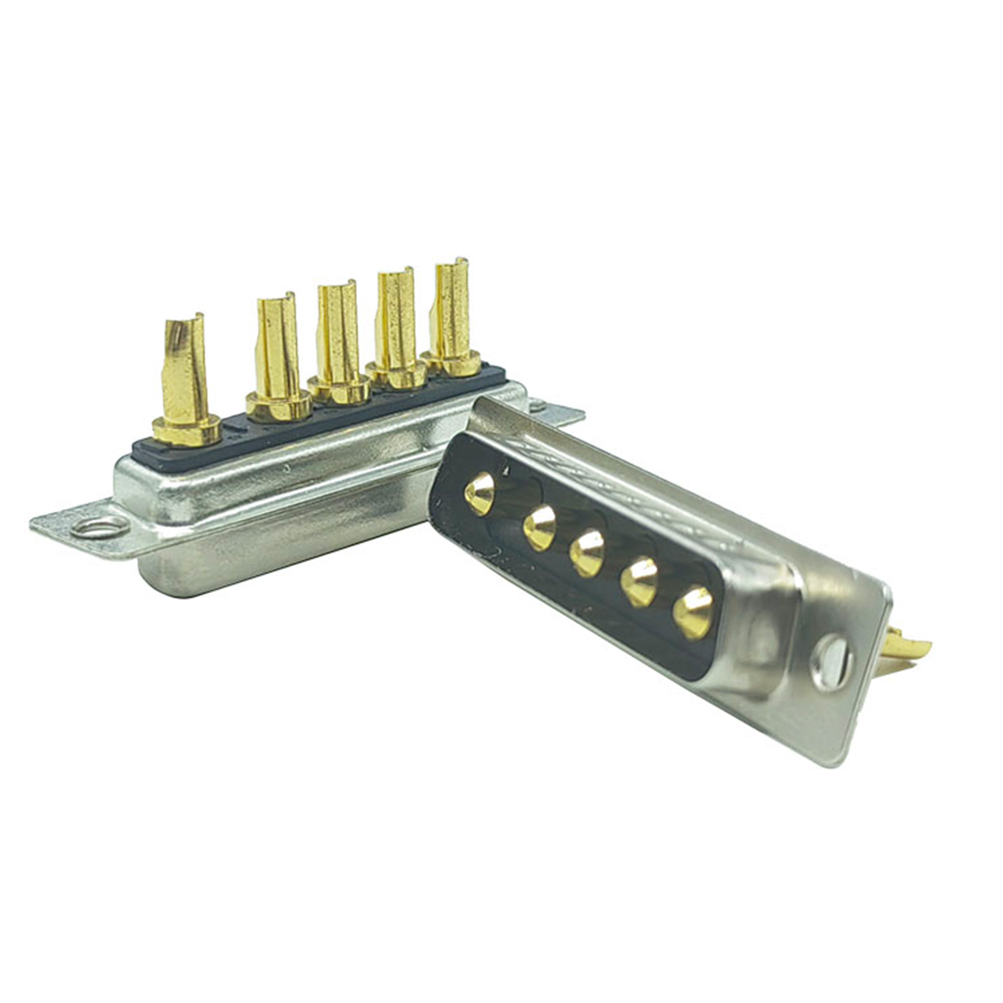

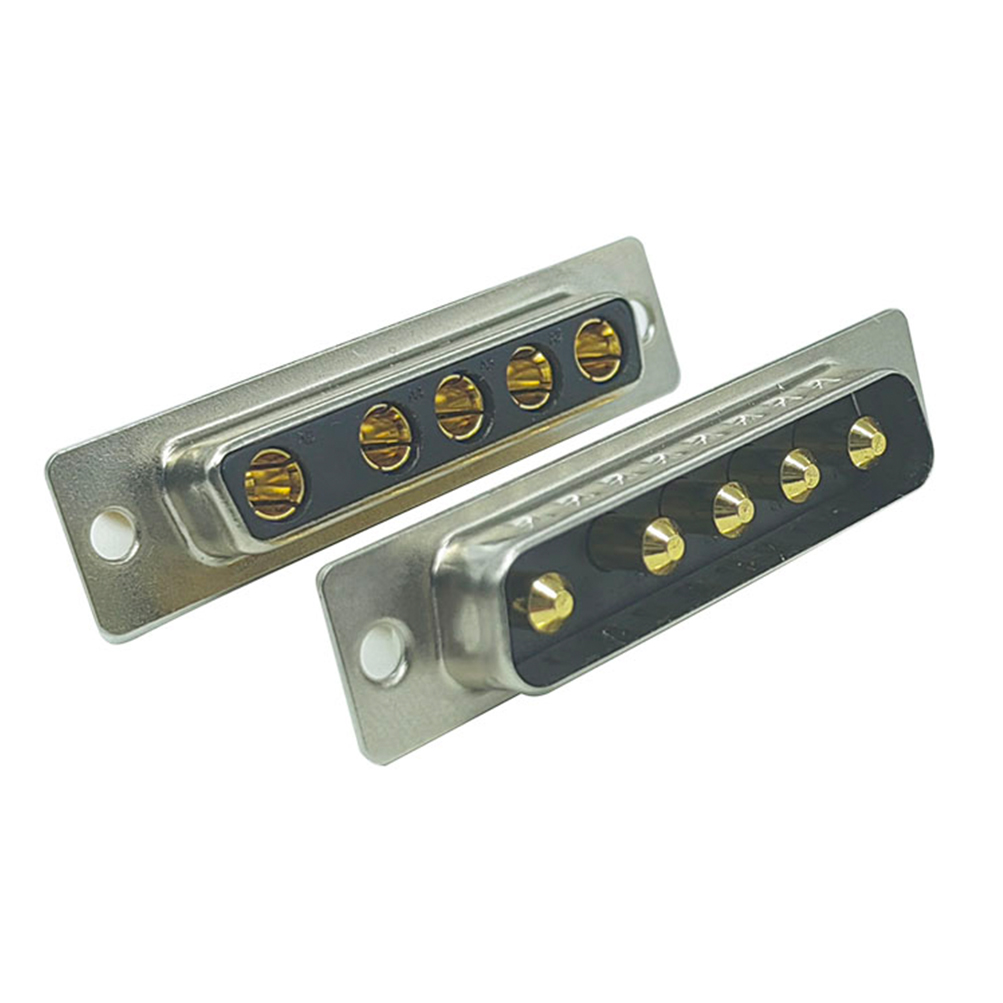

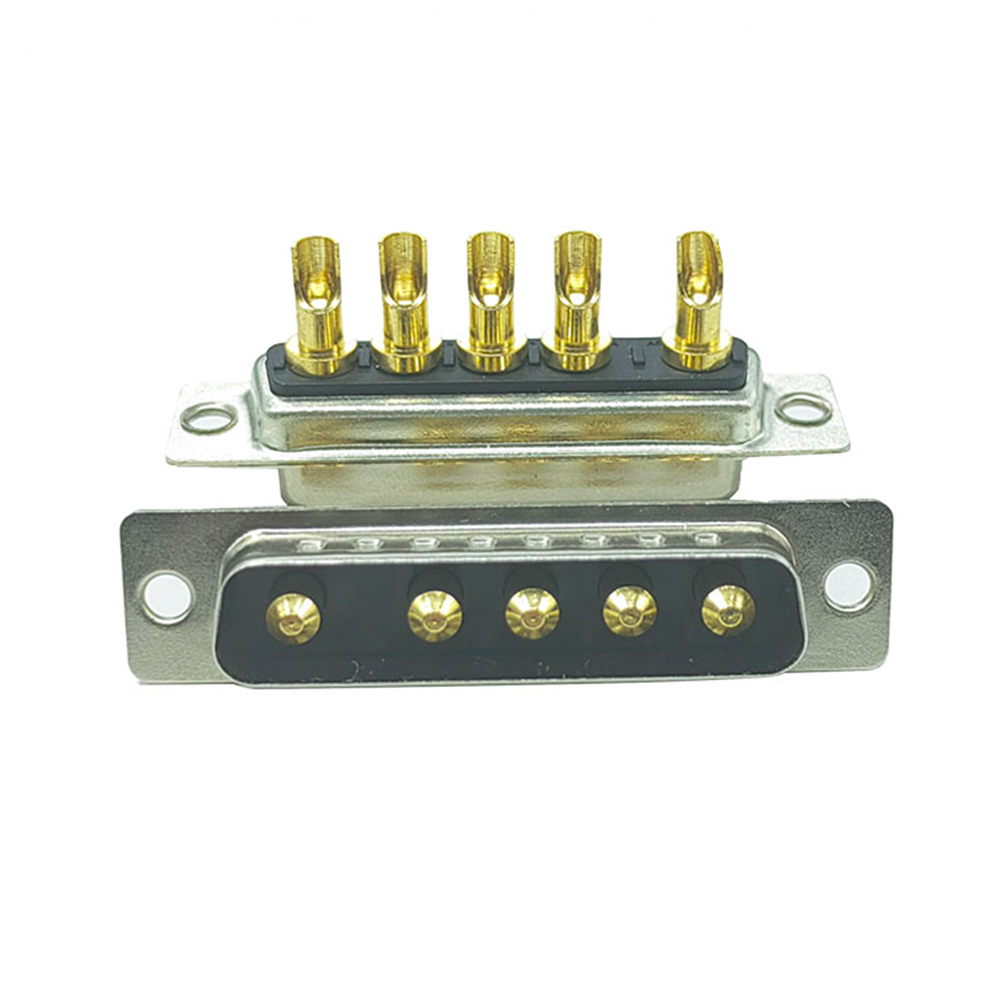

5 pin d connector male and female：   5W5 Solder-Cup High-Current d sub power connector (5 all high-current contacts, solder-cup type) 5W5 = 5-core high-current dsub connector , solder-cup type (non-PCB mount), 10–40A/250–500V per contact, metal shell + gold-plated contacts, UL94-V0 insulator, temperature rating -55°C to +125°C.   Power D-Sub Connectors Key Parameters (Solder-Cup Type)   Number of Contacts: 5 all high-current (no signal pins) Current Rating: 10A/20A/30A/40A (per contact) Voltage Rating: 250V AC / 500V DC Contact/Insulation Resistance: ≤25mΩ / ≥2000MΩ (at 500V DC) Mounting: Solder-cup (wire soldering), panel mount with locking screws Environment: Vibration resistant, flame retardant, 12h salt spray   Main Applications by Industry   1. Industrial Automation & Control Cabinets   PLC/Servo Systems: Direct power connection between control cabinets and servo motors or VFDs (10–40A). Industrial Robots: Power connection for robot arms/joint motors, vibration resistant…
