dr50 d connector male and female

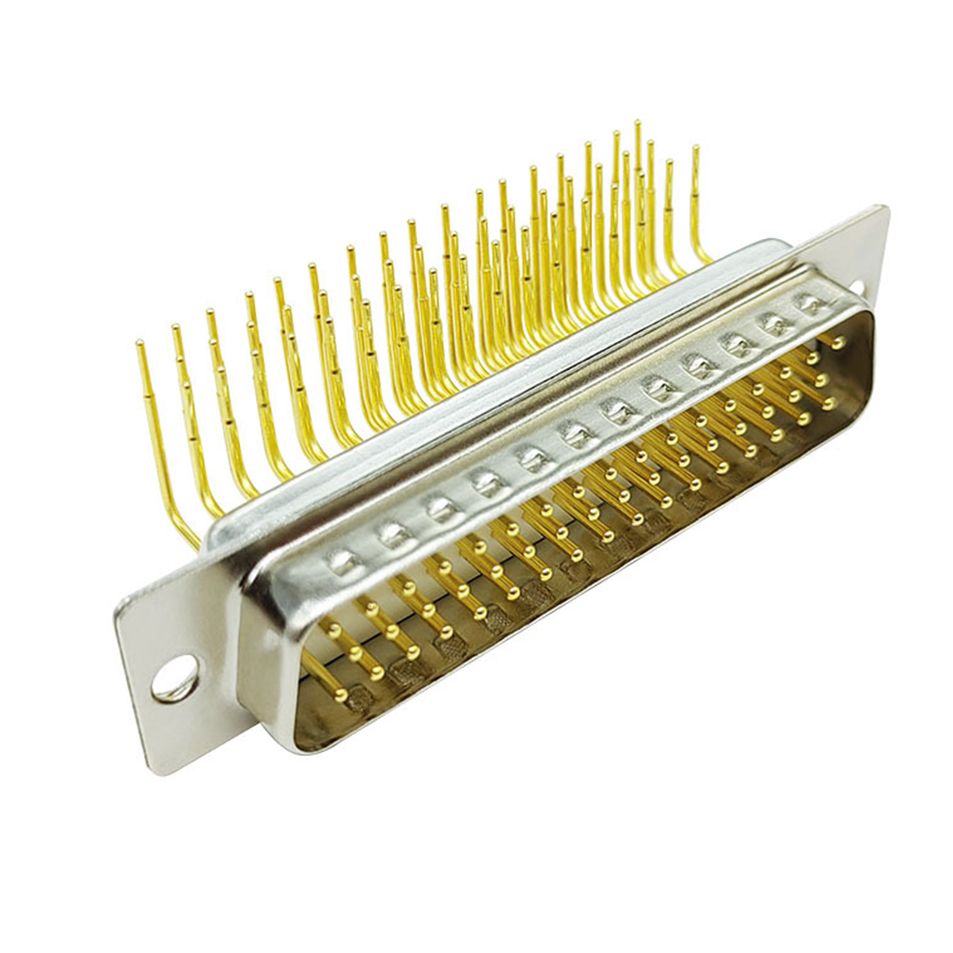

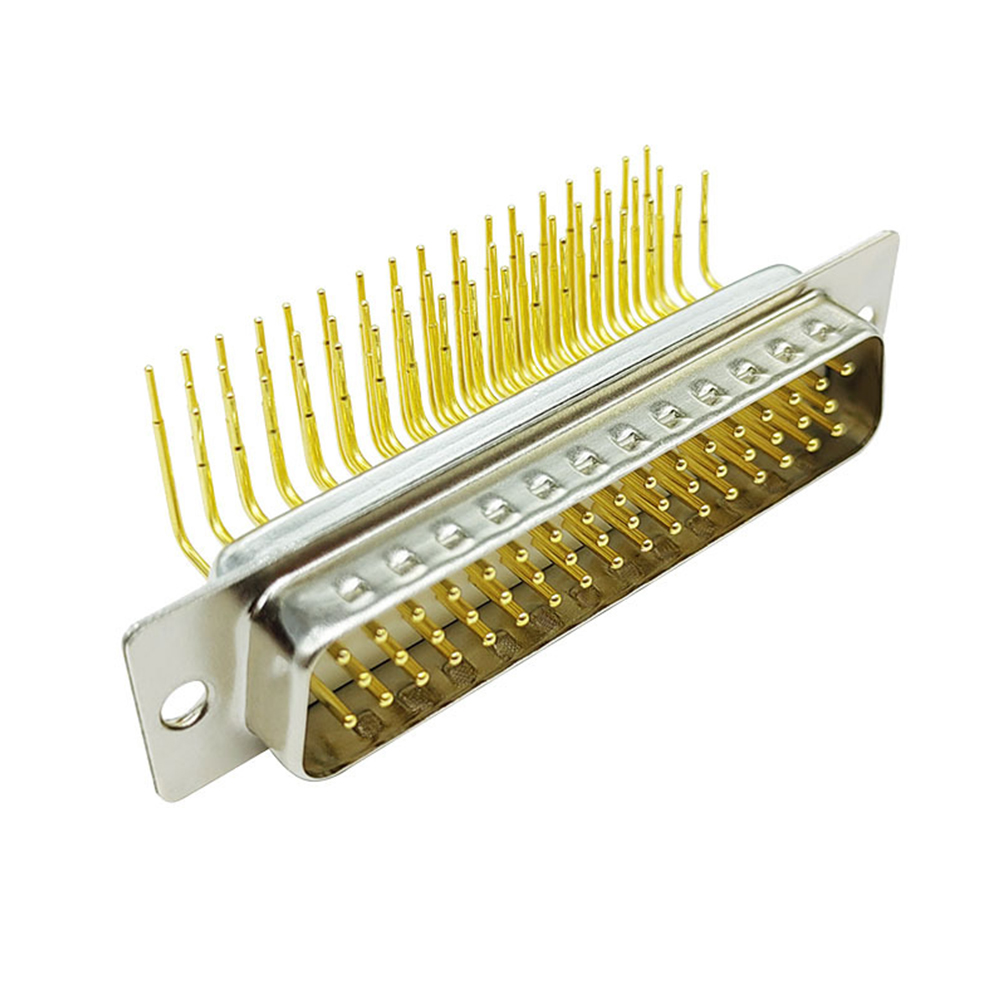

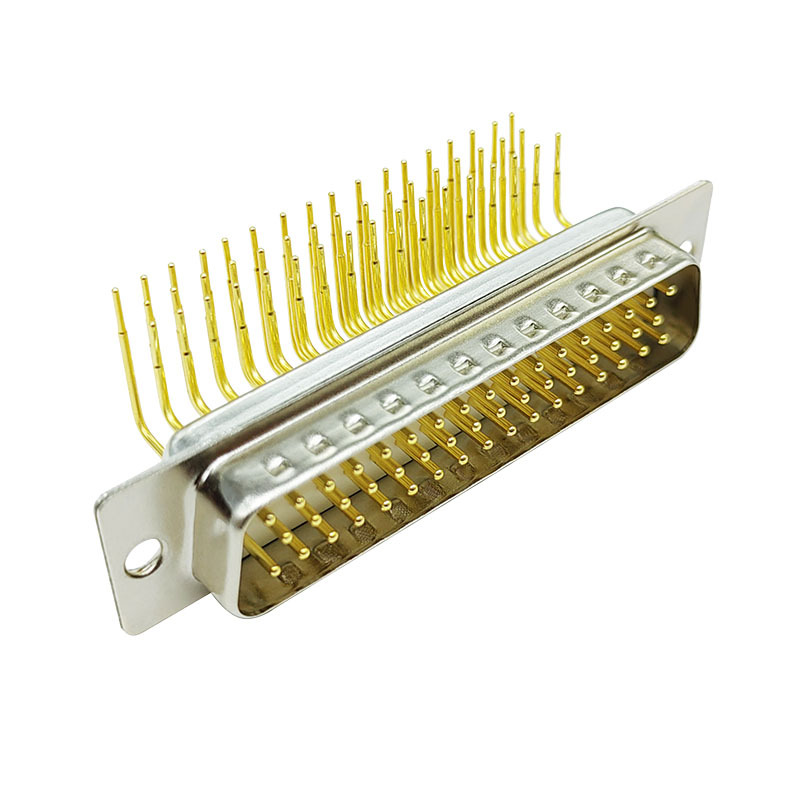

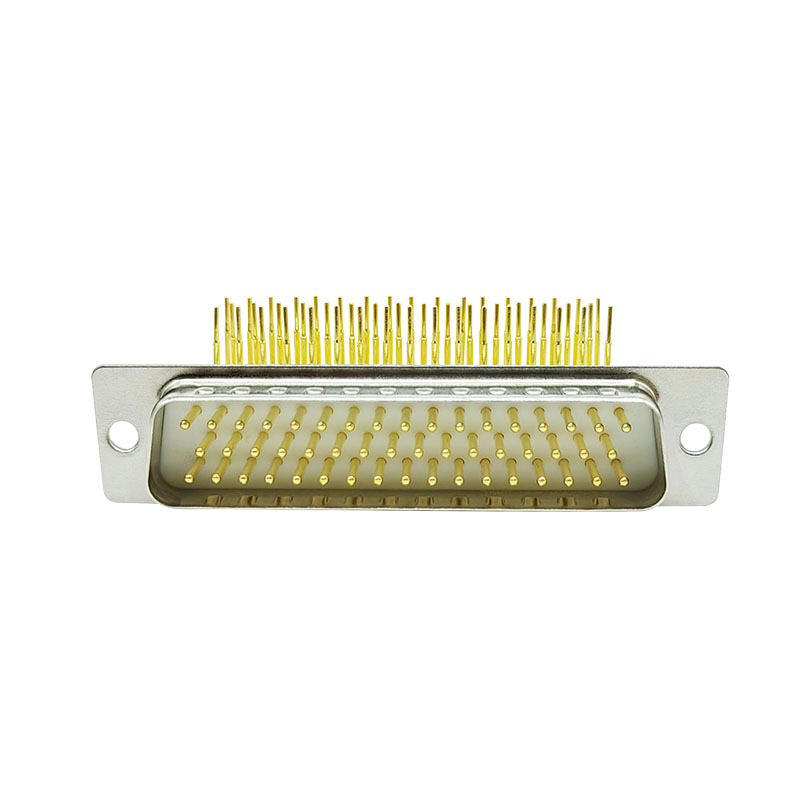

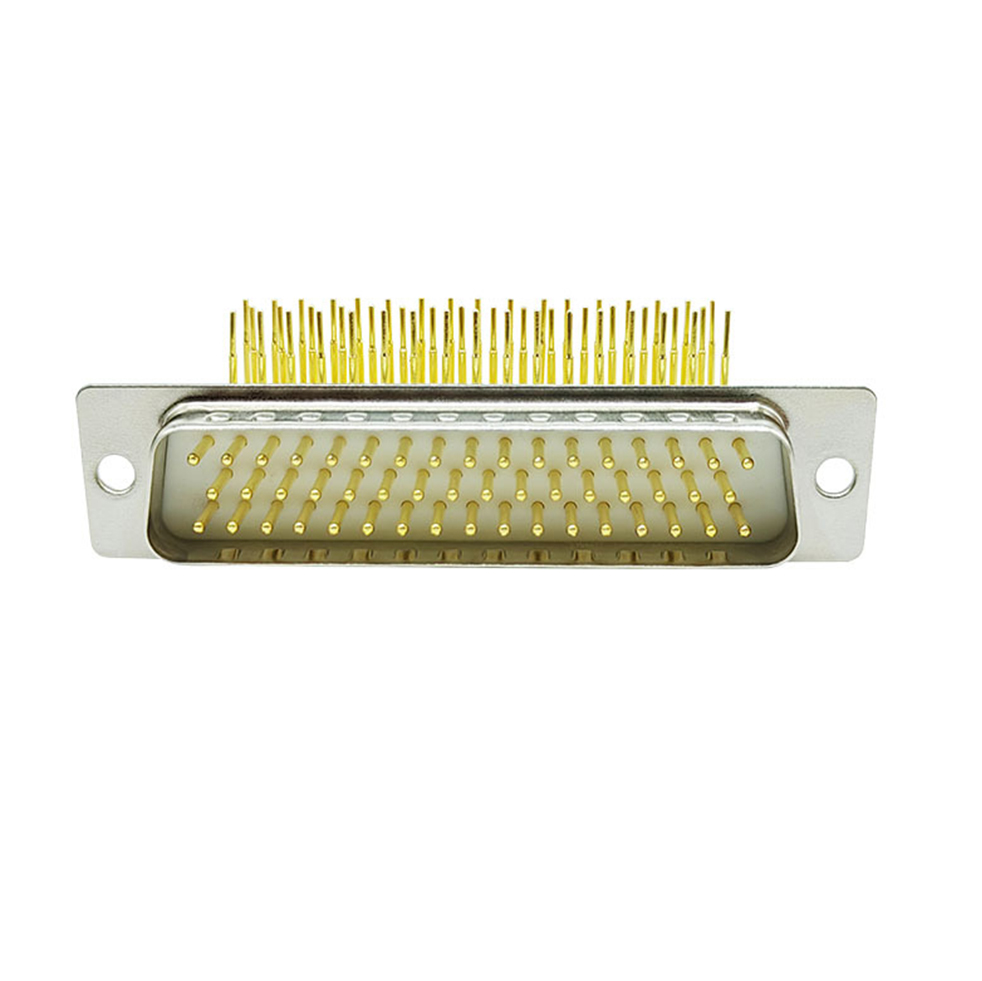

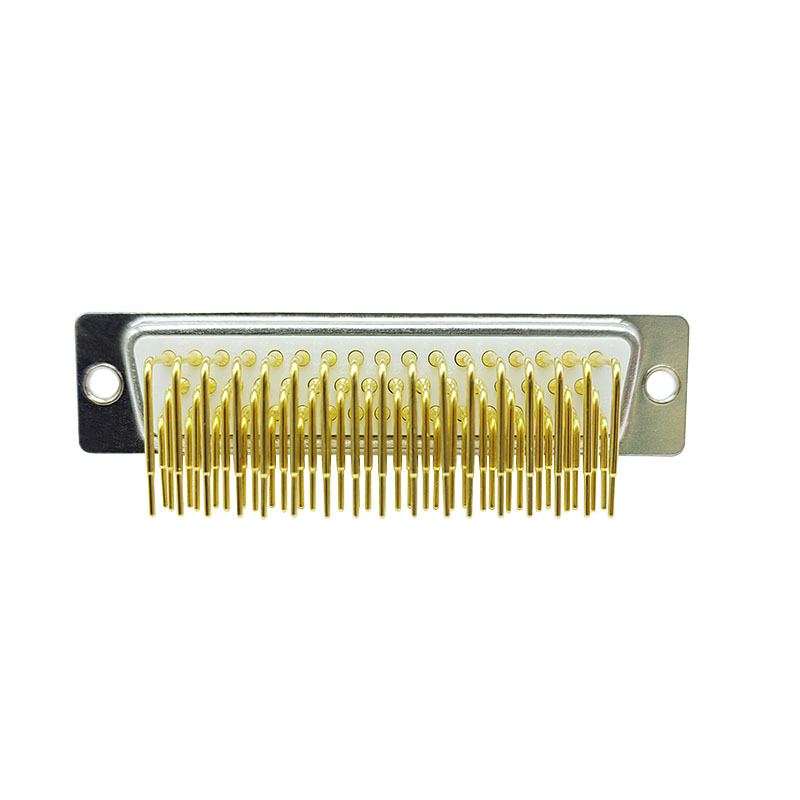

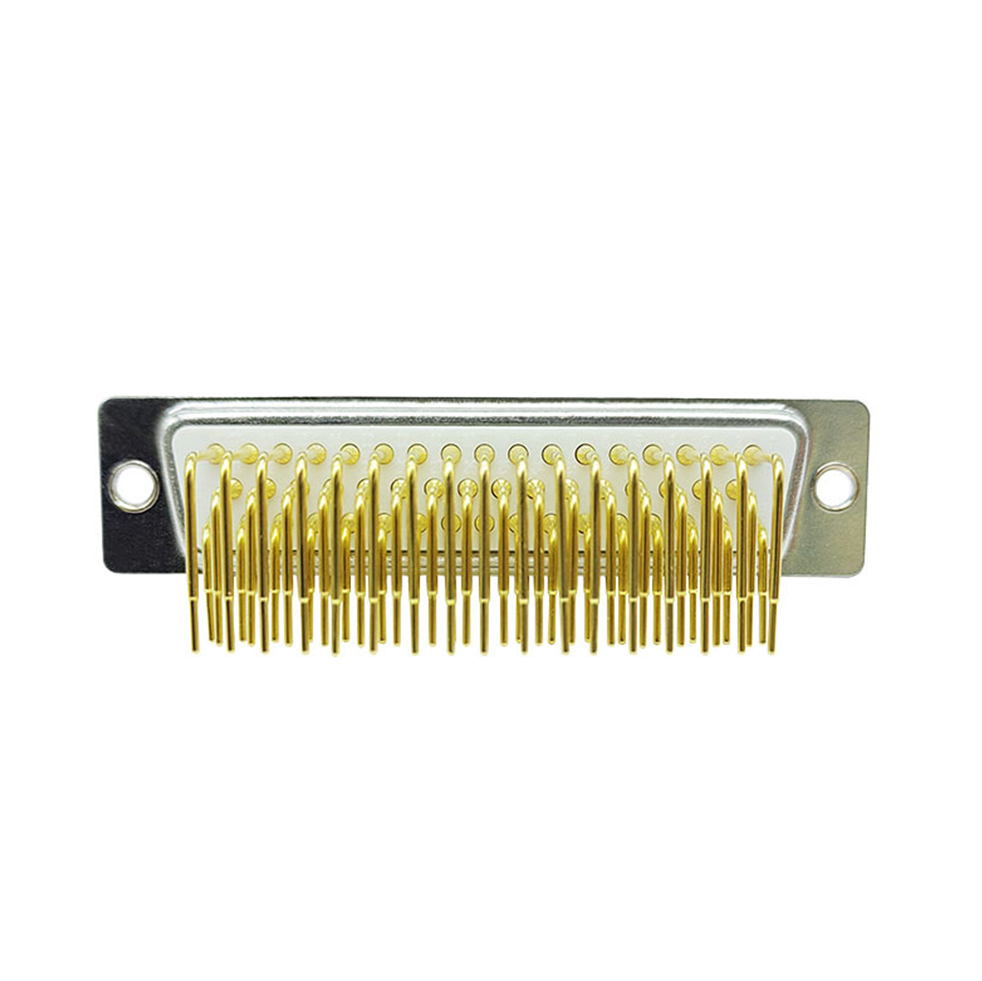

Bending 50 pin female d sub connector:Bend 50 pin d connector (often called HDR50 bend / insert),This is the D-SUB high-tech (HD-20) series, which is designed for three rows of 50 pins, 90 ° straight angle bend, perfectly solves the problem of PCB edge / corner wiring in small spaces, takes into account high density, space saving, easy assembly, and strong shielding, and is the core interconnect device in the compact layout of industrial equipment.   Core specification and configuration design of 50 pin dsub connector   Pin configuration: three rows of 50 pins (17-16-17 rows, 2.77mm apart), standard D-type shielding enclosure, 90 ° right-angle PCB installation, suitable for edge / corner space restriction scenarios. Termination mode: bent insert type (THT90 °), straight angle bending pin directly insert welding PCB, free wire welding, free crimping;Positioning column + anti-stay D-type mouth, accurate positioning, anti misinsertion. Shell and insulation: metal shield shell (tin / ni…
