dr25 pin d sub connector male and female

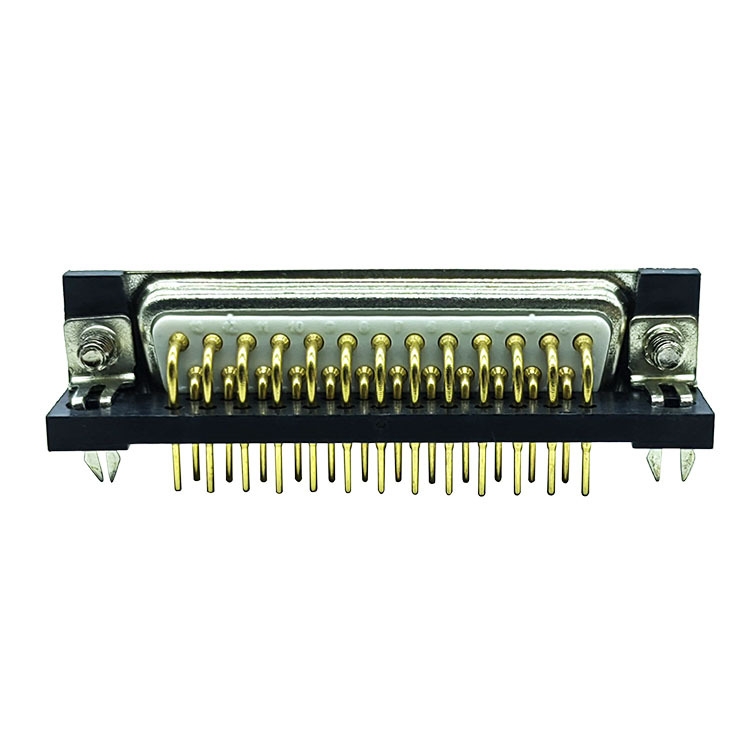

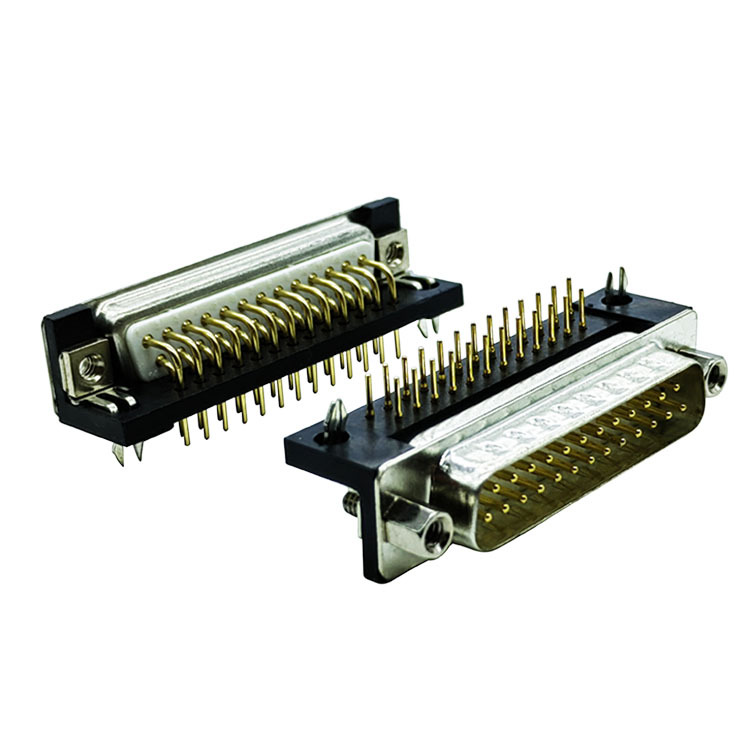

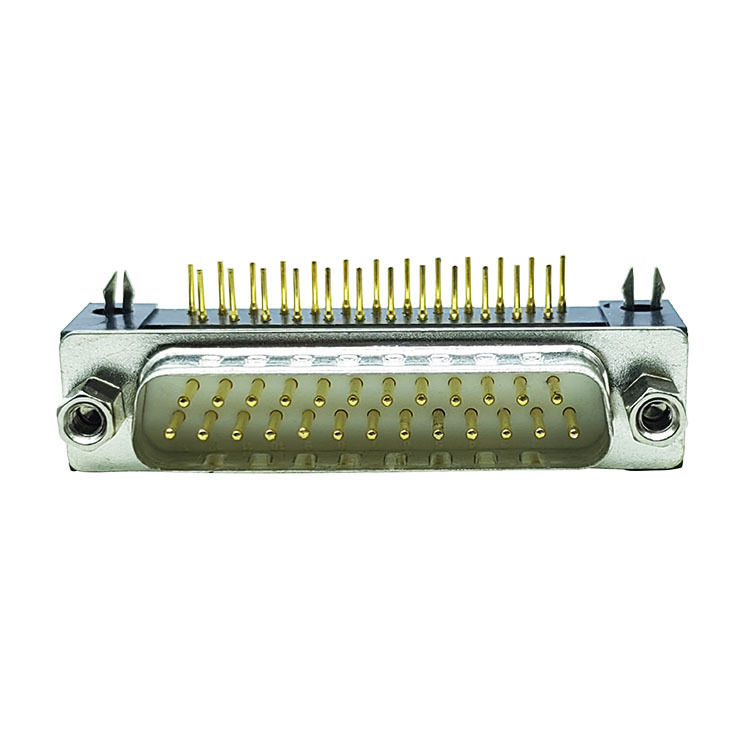

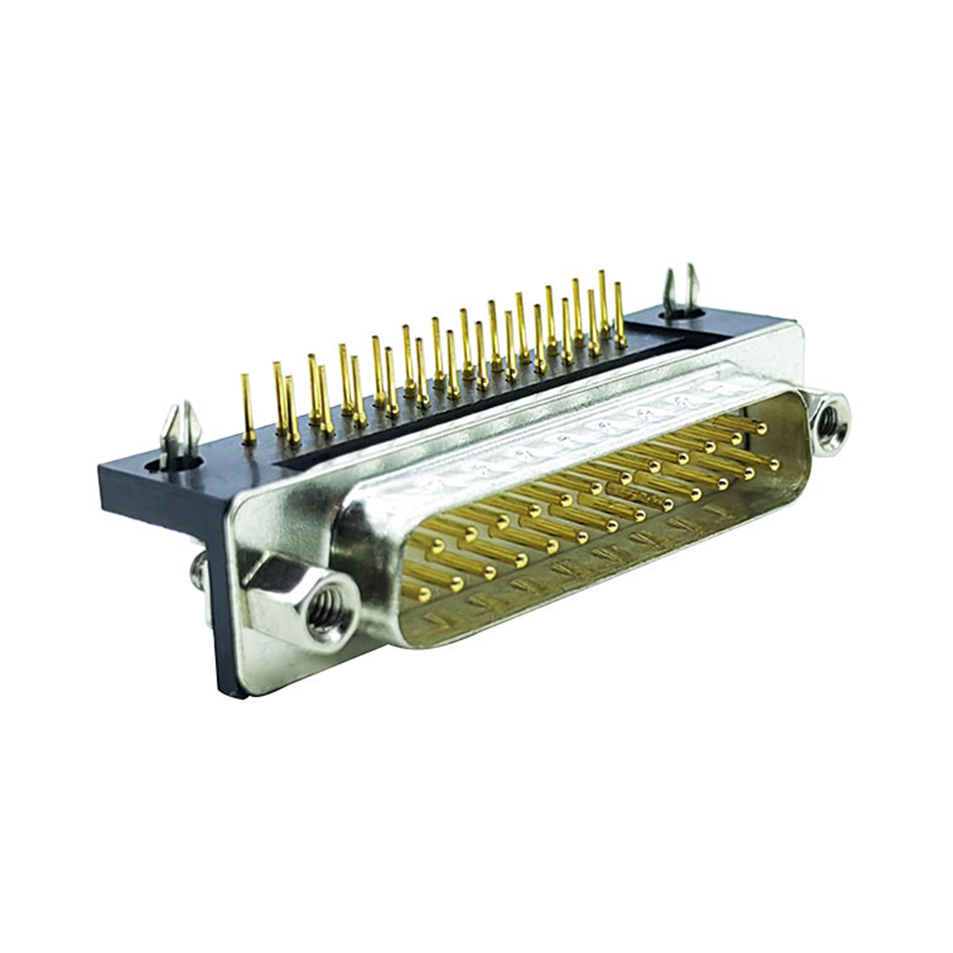

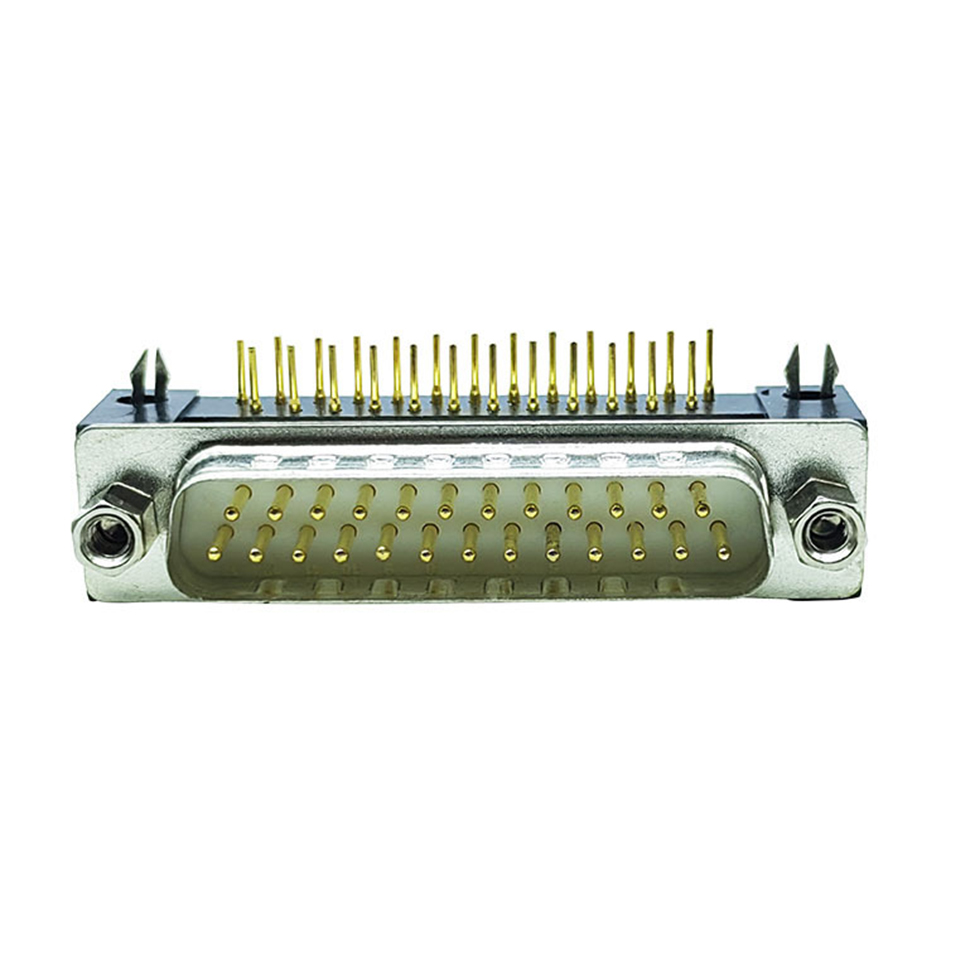

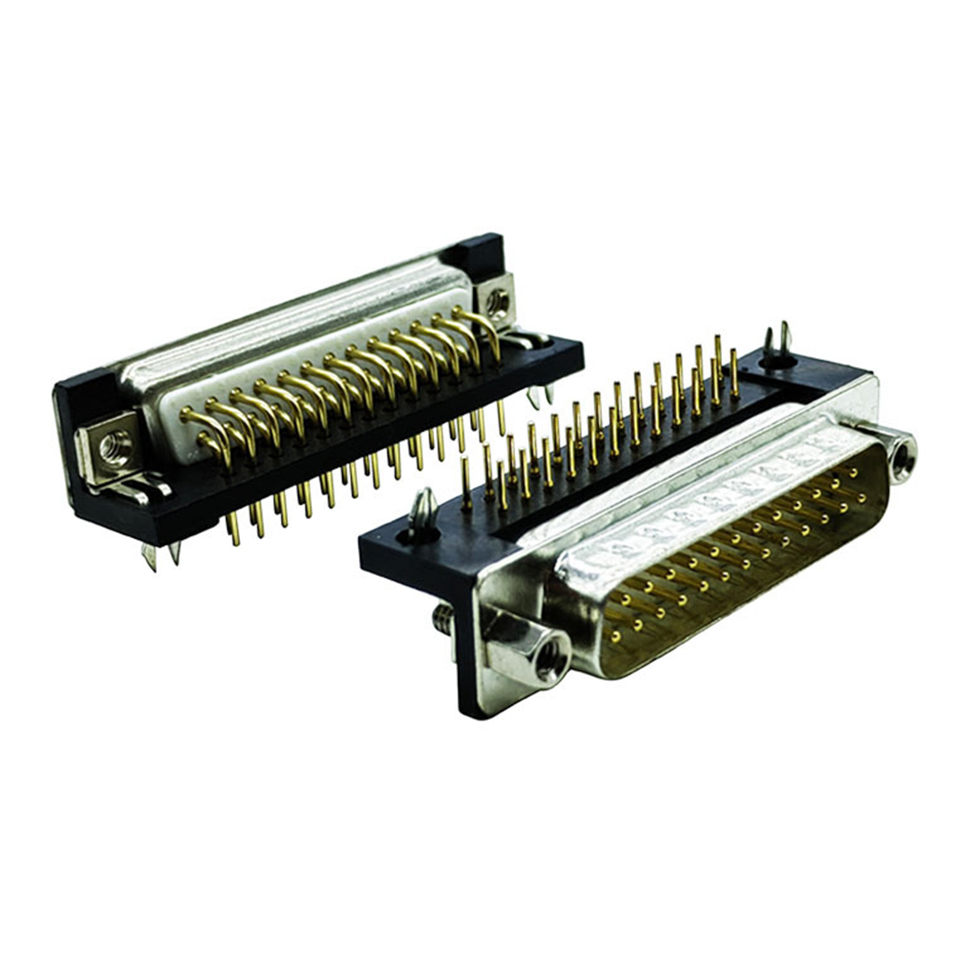

25 pin d sub connector female with black baffle, this d connector is 90 ° bent plug design, black PBT baffle + metal shield shell, plate side out, insulation dust, reinforced seismic.Pandi manufactures the 25 pin male d sub connector, which is commonly used in industry.   Structure and appearance   Model: DR25 (Bend 25 P), both male and female seats Baffle: black PBT (UL94 V0 flame retardant), integrated injection molding, insulation and dust proof Housing: Metal shield (EMI / RFI resistant) with metal mounting bracket / harpoon on both sides Pin: 90 ° bend (right angle), double row 13 + 12, spacing 2.74 mm, row spacing 2.84 mm Color: Black panel + metal shell, highly recognizable   Core parameters of d sub connector 25 pin   Trigger: Phosphorus Copper Goldplated (20 μm)" ) / Tined, solid-core car needles are more earthquake resistant Current / Voltage: 5 A 40V AC, 750 V AC / 1min Insulation / contact: extreme resistance ≥ 1000MΩ; Contact resistance ≤ 30 mΩ Temperature: -55 ° C ~ 105…
