dr15 d sub connector female

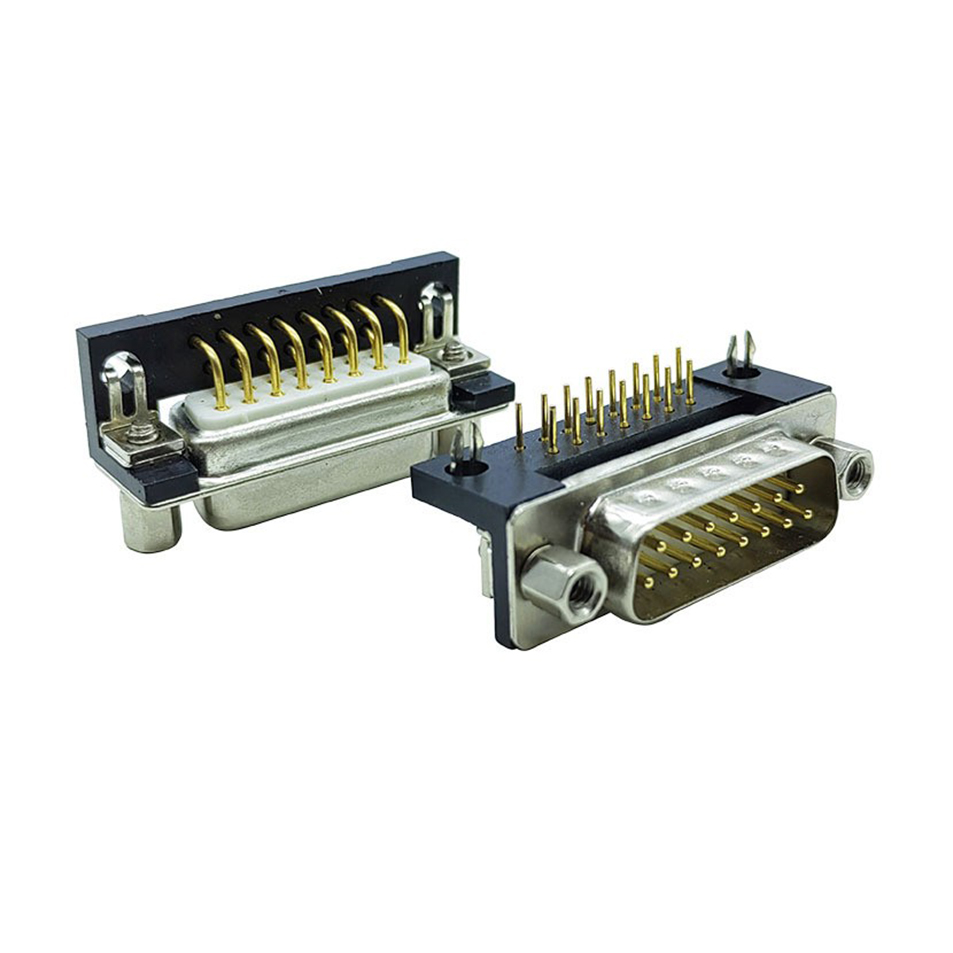

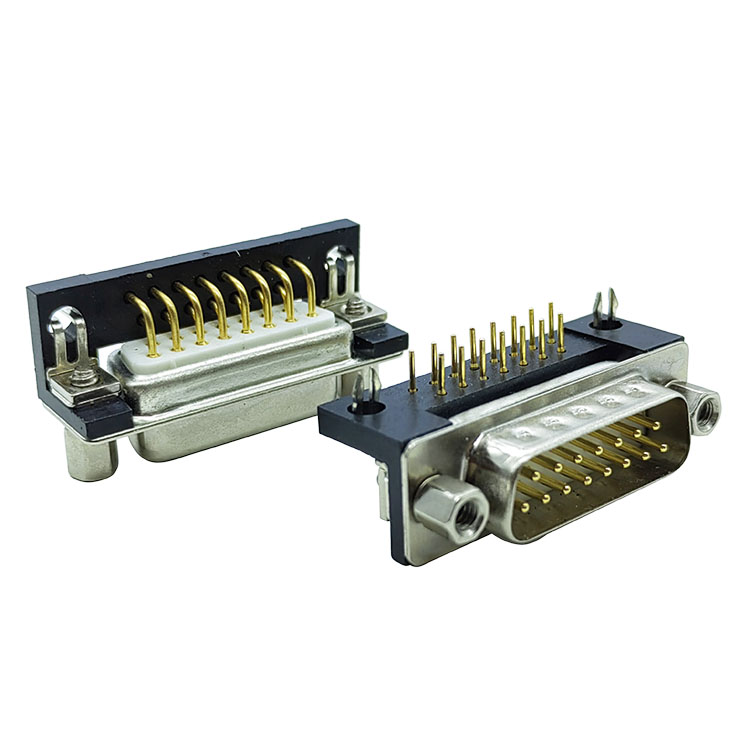

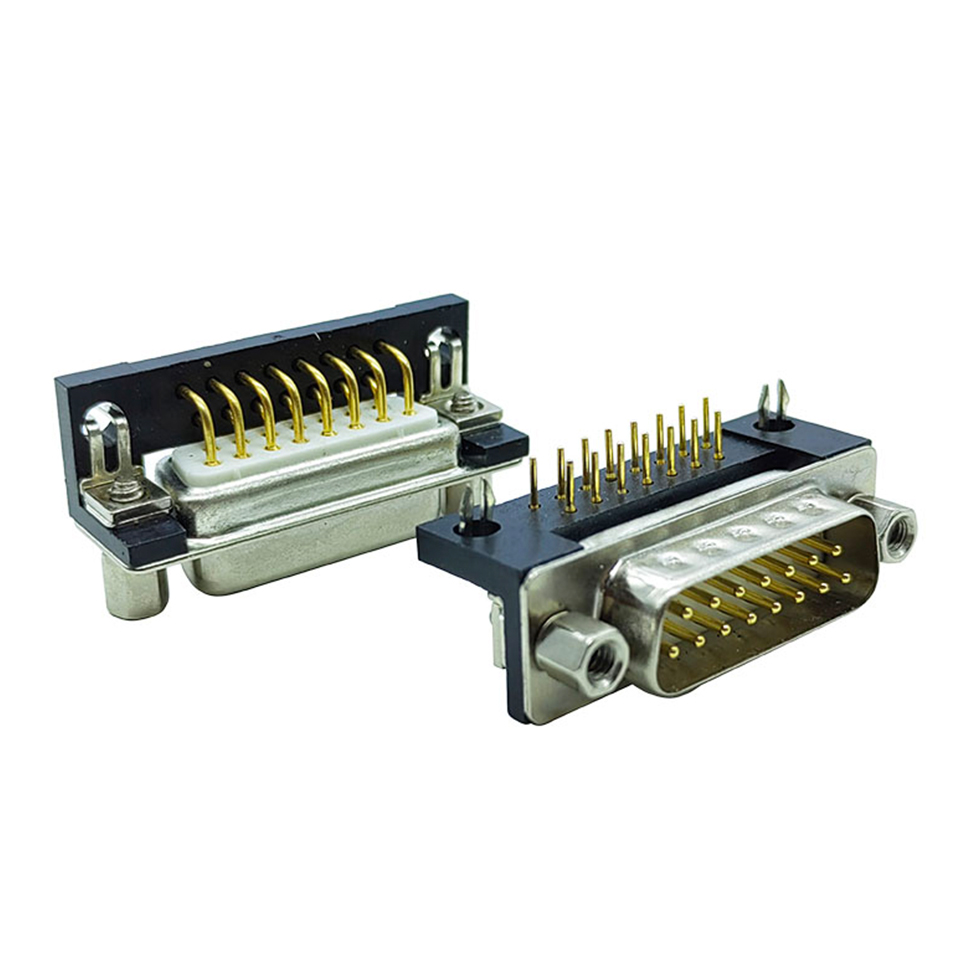

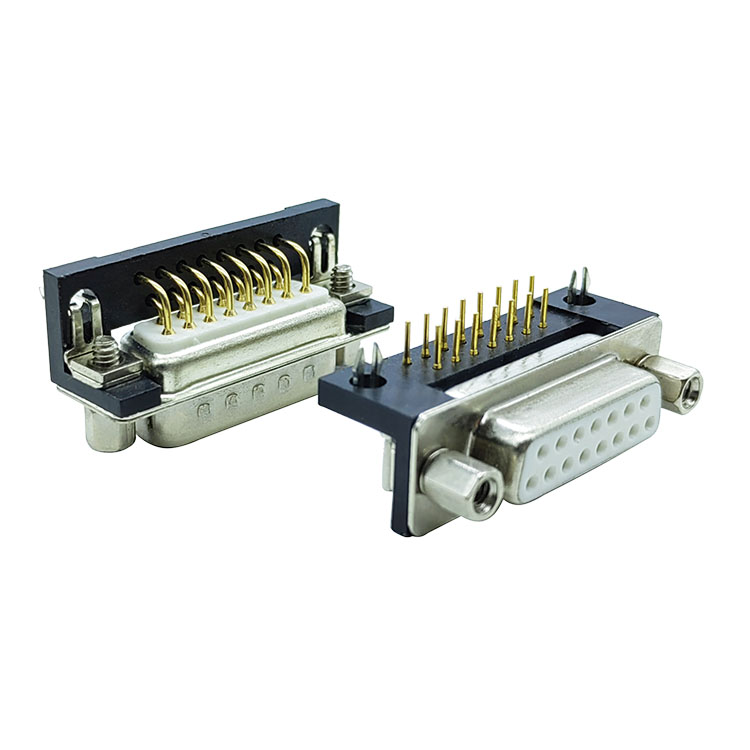

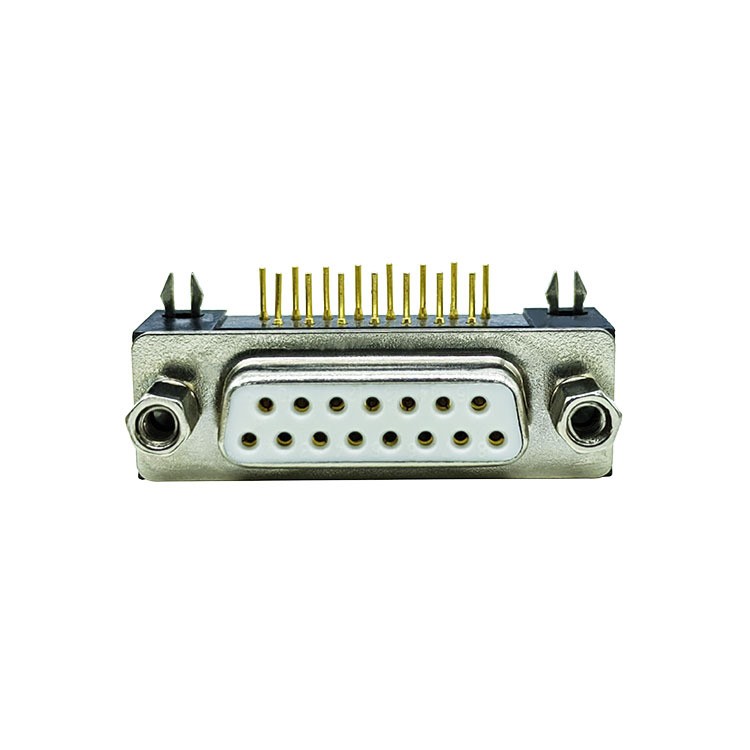

The D Sub 15 Pin Female Lock Nut is a flagship product of Pan Di’s company, with a wide range of applications and high demand for procurement. DR15 = DB15,15 pin d sub, double row 15 pin with black plastic baffle (mounting bracket / positioning baffle), this d connector It is commonly used in industry.   Core Specifications Number of pins: 15 Pin (double row: upper 7 lower 8;Three rows: 5 × 3, for VGA) Male and female: 15 Pin High Density D Sub Female (pin) / Dr15 D Sub Connector Male (empty) Installation: 90 ° bend insert (welding PCB), black baffle with positioning column / screw hole, anti-stay, reinforcement, easy to weld Rubber core: black PBT (UL94-V0 flame retardant); Enclosure: nickel-plated metal, well shielded Touchpoint: Brass gilded (resistant to oxidation); Single needle 3 A ~ 5A, working temperature -55C ~ + 105C Locking: M3 screw fixed at both ends, anti-loosening and seismic   The role of the black panels 1. Positioning anti-stay: PCB solder plate positioning, to pr…
