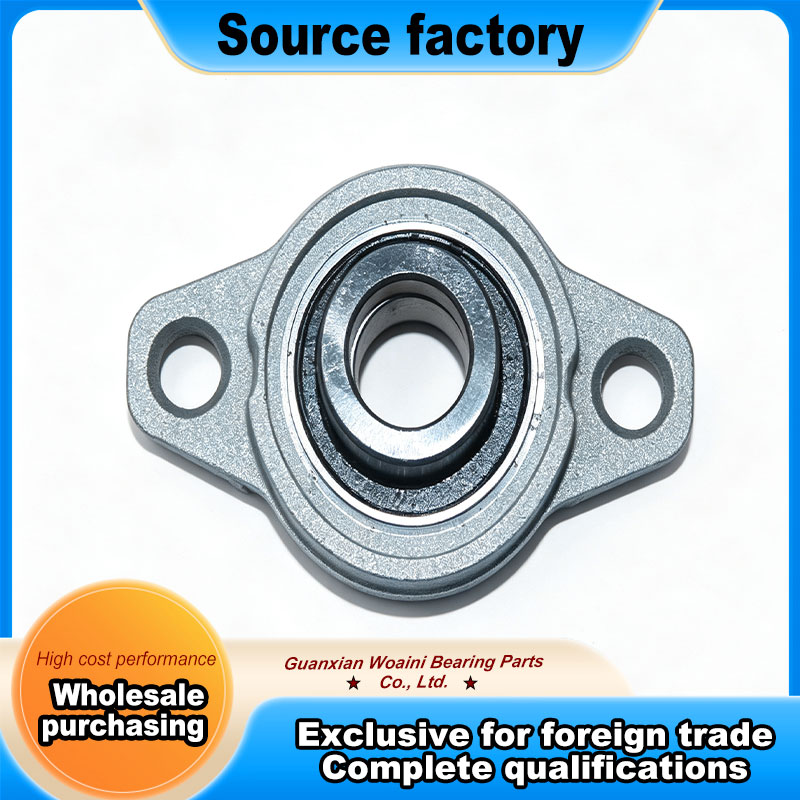

Mini Diamond Flanged Bearing Unit

Light-duty diamond flanged bearing unit is composed of UC001 insert bearing and UFL001 housing, classified as Pressed Bearings, Miniature Bearings, Precision Ball Bearings, Small Industrial Bearings and High-Speed Bearings for light-load transmission. It features shaft diameter d=5mm, outer diameter D=12.5mm, bearing width B=6.0mm and fits M6 mounting bolts. The GCr15 bearing insert is matched with SPCC stamped steel housing equipped with single-layer NBR dust seal and set screw locking, with total weight of only 0.07kg. It meets P0 precision grade, with basic dynamic load Cr=1.5kN and static load C0r=0.75kN. The limiting speed reaches 10000r/min, recommended continuous running speed ≤7200r/min, outer ring linear speed 6.5m/s, and ±2° self-aligning capability to compensate installation misalignment. Pre-filled lithium grease works at -20℃~100℃; with high-temperature grease and FKM seals, it can withstand up to 160℃. Applicable humidity should be ≤85%RH. Avoid prolonged water immersion…
