Reliable Sliding Block Bearing Housing Unit

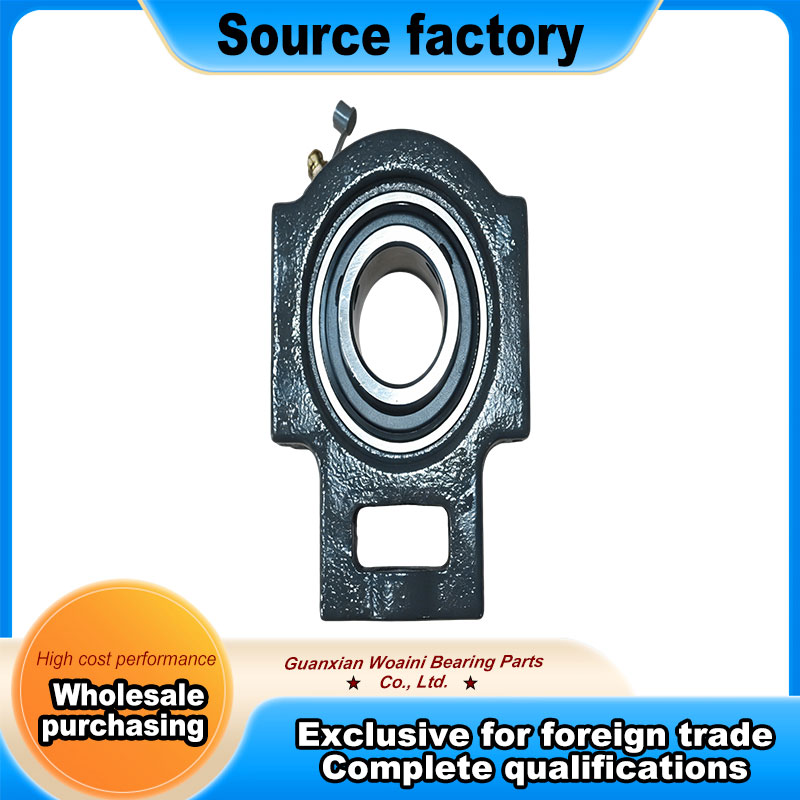

UCT207 adjustable sliding block bearing unit is assembled with UC207 insert bearing and T207 housing, classified as Sliding Block Bearing Housing, Bearing Housing Unit and Adjustable Slide Housing, a cost-effective choice compared with Heavy-Duty Bearing Bracket for medium load transmission. It has shaft diameter d=35mm, outer diameter D=72mm, bearing width B=42.9mm, compatible with M14 mounting bolts. The bearing insert adopts GCr15 bearing steel, and the HT200 grey cast iron housing is equipped with double-layer NBR TRL oil seal and double set screw locking, with total weight of 1.58kg. It meets P0 precision grade, with basic dynamic load Cr=25.5kN and static load C0r=15.3kN. The limiting speed is 3400r/min, recommended continuous speed ≤2600r/min, outer ring linear speed 18m/s and ±2° self-aligning capability. Pre-filled lithium grease allows operation at -20℃~100℃; matched with high-temperature grease and FKM seals, it can withstand up to 160℃. Applicable humidity ≤85%RH. Prevent p…
