Reliable Sliding Block Bearing Housing Units

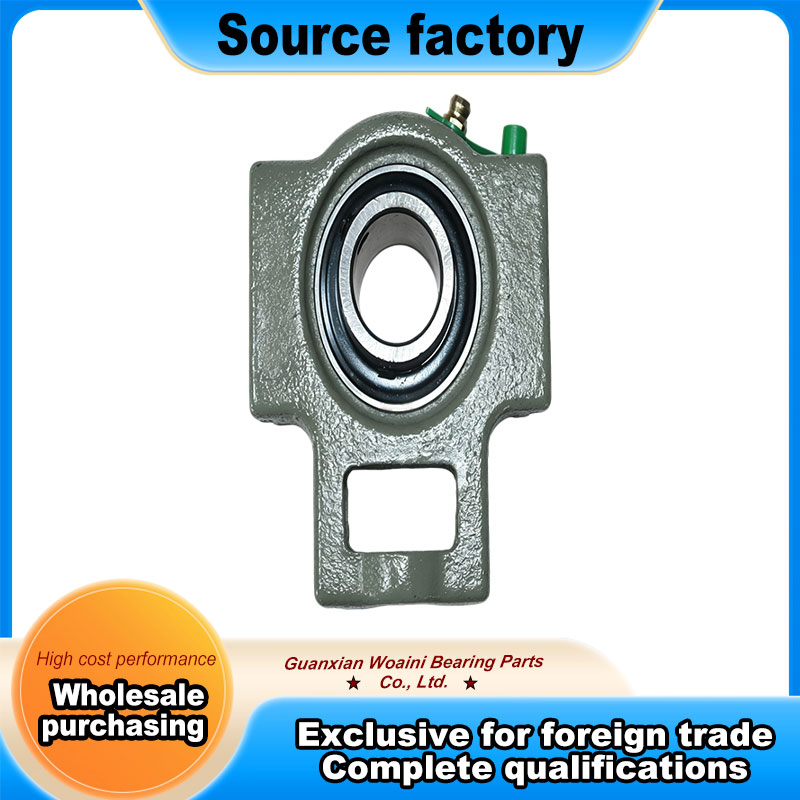

UCT205 adjustable sliding block bearing unit consists of UC205 insert bearing and T205 housing, categorized as Sliding Block Bearing Housing, Bearing Housing Unit and Adjustable Slide Housing, serving as a practical alternative to Heavy-Duty Bearing Bracket for moderate loads. It has shaft diameter d=25mm, outer diameter D=52mm, bearing width B=34.1mm and fits M12 mounting bolts. Constructed with GCr15 bearing steel insert and HT200 grey cast iron housing, it adopts double-layer NBR TRL oil seal and double set screw locking, with a total weight of 0.83kg. Rated P0 precision grade, it achieves dynamic load Cr=14kN and static load C0r=8.88kN. The limiting speed is 5000r/min, recommended continuous speed ≤3600r/min and outer ring linear speed 13m/s, with ±2° self-aligning capacity. Pre-filled lithium grease supports operation from -20℃ to 100℃; with high-temperature grease and FKM seals, maximum operating temperature reaches 160℃. Applicable humidity shall not exceed 85%RH. Avoid long-ter…
