Performance Sliding Block Bearing Housing

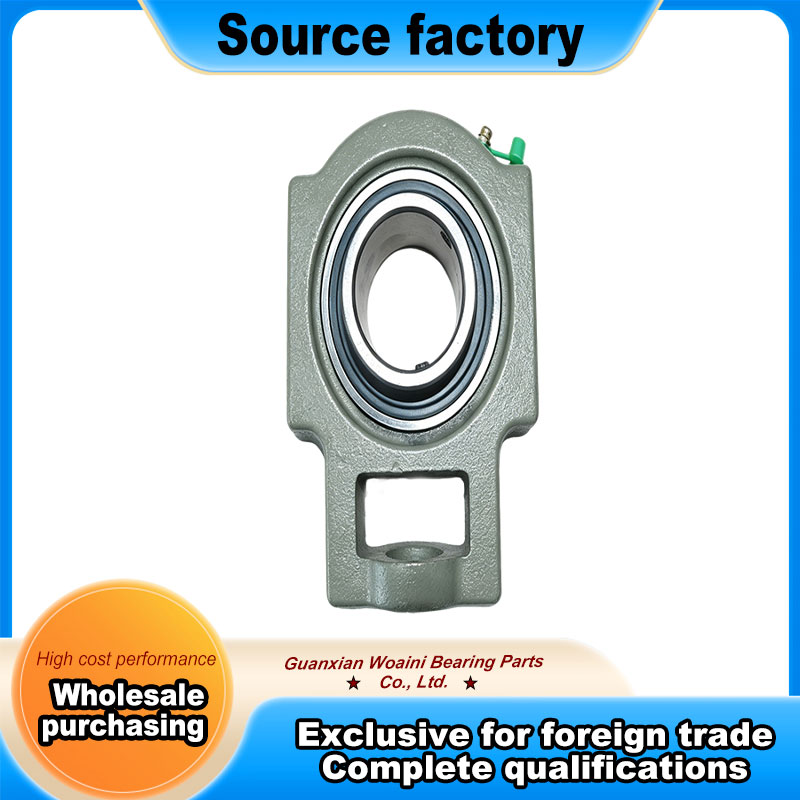

UCT212 adjustable sliding block bearing unit is assembled from UC212 insert bearing and T210 housing, classified as Sliding Block Bearing Housing, Bearing Housing Unit and Adjustable Slide Housing, and serves as reliable Heavy-Duty Bearing Bracket for medium-heavy load transmission. It has shaft diameter d=60mm, outer diameter D=110mm, bearing width B=65.1mm, compatible with M20 mounting bolts. The GCr15 bearing insert is matched with HT200 grey cast iron housing equipped with double-layer NBR TRL oil seal and double set screw locking, with total reference weight of 5.08kg. Reaching P0 precision grade, it delivers basic dynamic load Cr=47.8kN and static load C0r=32.8kN. Its limiting speed is 2000r/min, recommended continuous speed ≤1500r/min, outer ring linear speed 28m/s and ±2° self-aligning function to offset assembly deviation. Pre-filled lithium grease operates at -20℃~100℃; paired with high-temperature grease and FKM seals, it can withstand up to 160℃. Operating humidity should b…
