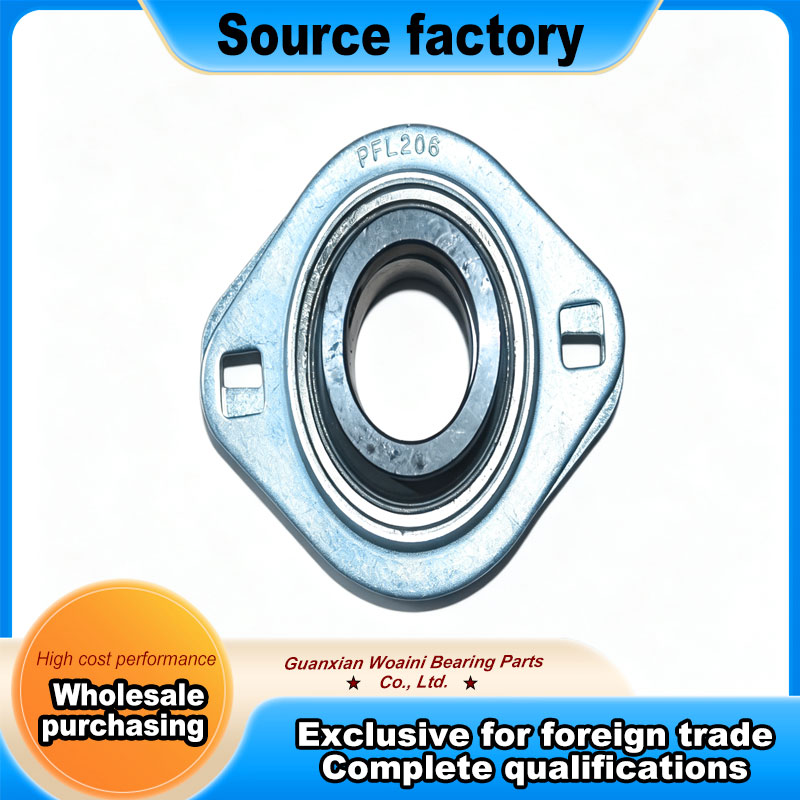

Stamped Diamond Bearing with Eccentric Locking Collar

The stamped diamond bearing unit consists of UC206 insert bearing and PFL206 housing, with shaft diameter d=30mm, outer diameter D=62mm, bearing width B=38.1mm, suitable for M12 mounting bolts. Classified as Pressed Bearings, Miniature Bearings, Precision Ball Bearings, Small Industrial Bearings and High-Speed Bearings, the insert bearing is manufactured from GCr15 bearing steel, and the housing is made of SPCC stamped steel plate. It adopts NBR single-layer dust seal and set screw locking structure, with a total reference weight of 0.77kg. It reaches P0 standard precision grade, featuring basic dynamic load Cr=19.5kN and basic static load C0r=11.5kN. The limiting speed is 4300r/min, and the recommended continuous operating speed is ≤3096r/min. The maximum linear speed of the outer ring is 14.0m/s, and it owns ±2° self-aligning capability. Pre-filled with standard lithium-based grease, its operating temperature ranges from -20℃ to 100℃. It can withstand up to 160℃ when matched with hig…
